Delock PCI Express kaart naar 4 x seriële RS 232 met voeding

Onlinekabelshop.nl

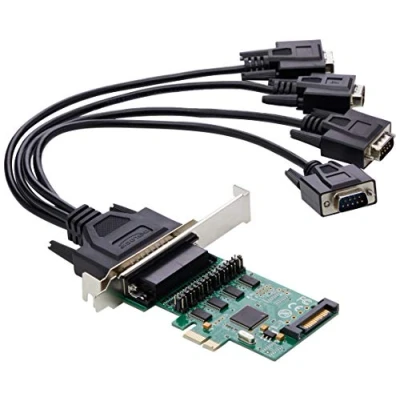

Description The PCI Express card by Delock expands a PC by four external serial ports. Connected devices can be optionally supplied with a voltage of 5 V or 12 V.Low Profile Form FactorBy using the included low profile bracket, the PCI Express card can be also installed into a Mini-PC. Specification• Connectors: external: 1 x DB44 female connecting cable: DB44 male>4 x serial RS-232 DB9 male internal: 1 x PCI Express x1, V1.1 1 x SATA 15 pin plug• Chipset: WCH384L• Data transfer rate up to 460.8 Kbps• FIFO: 256 byte• Databits: 4, 5, 6, 7, 8• Stop bits: 1, 1.5, 2• Parity: even, odd, none, mark, space• Flow control: none, hardware RTS / CTS, software XON / XOFF• Compatible with 16C950 UART• 5 V or 12 V can be set individually for each port through the jumper (pin 1 or 9)• Electrical power per port: 10 watt (5 V / 2 A)• Electrical power per port: 24 watt (12 V / 2 A)• Signals: DCD/12V/5V, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V• Cable length incl. connectors: ca. 35 cm System requirements •Windows 7/7-64/8.1/8.1-64/10/10-64/11• PC with one free PCI Express slot• Power supply with a free SATA power connector Package content • PCI Express card• Low profile bracket• 1 serial connecting cable• Driver CD• User manual
