Delock PCI Express kaart naar 8 x seriële RS 232

Onlinekabelshop.nl

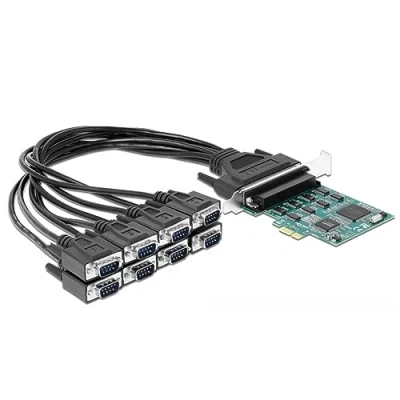

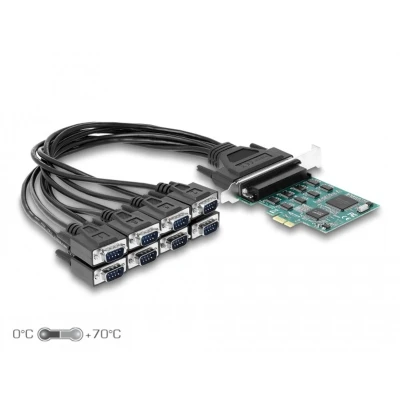

Description The PCI Express card by Delock expands a PC by eight external serial RS-232 ports. Different devices such as scanner, protocol converter, IoT devices etc. can be connected to this card.Fan-out cableThe approximately 45 cm long fan-out cable provides a high degree of flexibility at the eight RS-232 ports and simplifies the handling of computers, machines, facilities etc. Specification• Connectors: external: 1 x DB62 female connecting cable: DB62 male>8 x serial RS-232 DB9 male internal: 1 x PCI Express x1, V1.1• Chipset: SystemBase 16C1058PCI• Compatible with 16C550 UART• Data transfer rate up to 921.6 Kbps• FIFO: 8 x 256 byte• Databits: 5, 6, 7, 8• Stop bits: 1, 1.5, 2• Parity: even, odd, none, mark, space• Flow control: none, hardware RTS / CTS, software XON / XOFF• Operating temperature: 0 °C ~ 70 °C• Cable length incl. connectors: ca. 45 cm• Dimensions (LxWxH): ca. 93 x 78 x 12 mm System requirements • Windows 7/7-64/8.1/8.1-64/10/10-64• PC with one free PCI Express slot Package content • PCI Express card• 1 serial connecting cable• Driver CD• User manual

Amazon

Aansluitingen: extern: 1 x DB62 aansluiting aansluitkabel: DB62 stekker > 8 x serieel RS-232 DB9 stekker intern: 1 x PCI Express x1, V1.1 Chipset: SystemBase 16C1058PCI Compatibel met 16C550 UART Gegevensoverdrachtsnelheid tot 921,6 Kbps FIFO: 8 x 256 byte Kabellengte incl. aansluitingen: ca. 45 cm. Afmetingen (l x b x h): 93 x 78 x 12 mm.
