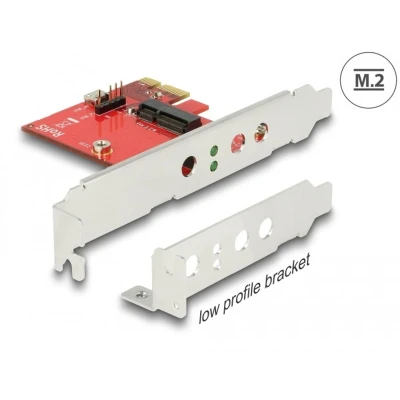

Delock PCI Express Karte > 1 x intern M.2 Key E Low Profile Formfakt

Description This PCI Express card by Delock expands the PC by one M.2 key E slot. Different M.2 modules with USB and PCIe signals can be inserted in the card. On the M.2 key A or key E interface can be used e.g. WLAN, Bluetooth, GNSS, 3G, HSPA and NFC modules. Further it is possible to use both functions of a module which has e.g. WLAN and Bluetooth. The USB modules need to be connected via the USB interface of the card to the system. Specification • Connectors: 1 x 67 pin M.2 key E slot 1 x PCI Express x1 1 x USB 2.0 Type Micro-B female (for M.2 USB modules) 1 x USB 2.0 pin header male (for M.2 USB modules)• Interface: PCIe + USB• Supports modules in format 2230, 1630 and 3030 with key E or key A+E based on PCIe and USB• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported• 2 x LED indicator• Each slot bracket with 3 x hole for antenna connector• OS independent, no driver installation necessary System requirements • PC with one free PCI Express slot Package content • PCI Express card• Low profile bracket• USB pin header cable 5 pin to 4 pin, length ca. 90 cm• User manual
