Delock PCI Express x1 kaart naar 1 x RJ45 5 Gigabit LAN RTL812 (Mini Express), Netwerkkaarten

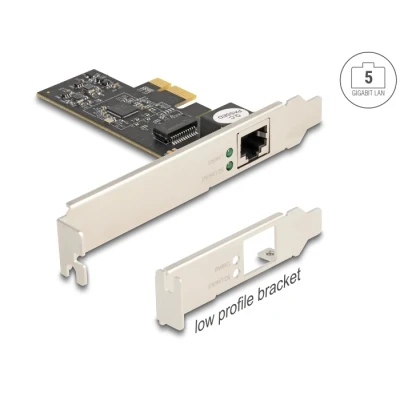

Description The PCI Express card by Delock offers one network port with a data transfer rate up to 5 Gbps.NBASE-T for higher speedModern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps, 2,5 Gbps and 5 Gbps with conventional networking cables. The best possible transmission rate is set automatically. Specification• Connectors: external: 1 x 5 Gigabit LAN RJ45 jack internal: 1 x PCI Express x1, V3.0• Chipset: Realtek RTL8126• Data transfer rate: Ethernet up to 10 Mbps Fast Ethernet up to 100 Mbps Gigabit Ethernet up to 1000 Mbps NBASE-T with up to 2.5 Gbps and 5 Gbps PCI Express x1 up to 8 Gbps• Supports IEEE 802.3 / 802.3u / 802.3ab• Supports Wake On LAN (WOL)• Supports IEEE 802.1P layer 2 priority encoding• Supports IEEE 802.3x full duplex flow control• Supports IEEE 802.1Q Virtual LAN (VLAN)• Supports 16k Jumbo Frames• LED indicator for link and activity System requirements • Windows 10/10-64/11• PC with one free PCI Express slot Package content • PCI Express card• Low profile bracket• User manual
