Delock PCI Express x16 Karte zu 4 x intern SFF 8643 NVMe Bifurcation

Bol Partner

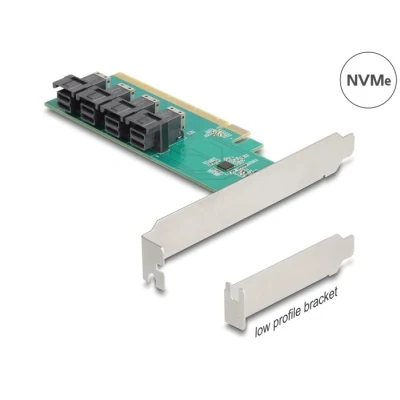

Description This PCI Express card by Delock expands the PC by four SFF-8643 interfaces. SSDs with e.g. U.2 interface can be connected to these ports by using an optional cable.PCIe BifurcationThe card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple ports.NoteWithout PCIe bifurcation only the first SFF-8643 port of the card can be used. Specification • Connectors: 4 x SFF-8643 female 1 x PCI Express x16, V4.0• Supports NVM Express (NVMe)• Bootable, ex UEFI version 2.3.1• 4 x LED indicator System requirements • Linux Kernel 6.2 or above• Windows 10/10-64/11• Windows Server 2022• PC with one free PCI Express x16 / x32 slot Package content • PCI Express card• Low profile bracket• User manual

Onlinekabelshop

Description This PCI Express card by Delock expands the PC by four SFF-8643 interfaces. SSDs with e.g. U.2 interface can be connected to these ports by using an optional cable. PCIe Bifurcation The card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple ports. Note Without PCIe bifurcation only the first SFF-8643 port of the card can be used. Specification • Connectors: 4 x SFF-8643 female 1 x PCI Express x16, V4.0 • Supports NVM Express (NVMe) • Bootable, ex UEFI version 2.3.1 • 4 x LED indicator System requirements • Linux Kernel 6.2 or above • Windows 10/10-64/11 • Windows Server 2022 • PC with one free PCI Express x16 / x32 slot Package content • PCI Express card • Low profile bracket • User manual

Allekabels

Interface: PCI Express 4.0 x16 Aansluiting 1: PCI Express x16 Aansluiting 2: 4x SFF-8643 female (36-pins) Ondersteuning: PCIe-bifurcation Geschikt voor: NVMe/U.2 SSD's
