Delock PCI Express x4 Card to 2 x external USB Type-C 40 Gbps (DP Alt Mode) female Low Profile Form Factor

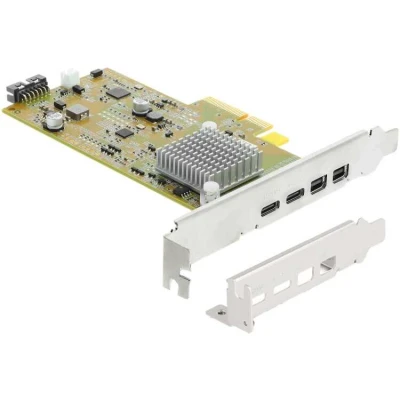

Description This PCI Express card by Delock expands the PC by two external USB-C™ ports. Different USB devices such as USB flash memory, card reader, external enclosure etc. can be connected. The card also supports Thunderbolt™ 3 devices on the USB-C™ ports. Video output at USB-C™ port By using the included cables, the Mini DisplayPort connectors of the PCI Express card can be connected to the DisplayPort outputs of a graphics card on the motherboard. Therefore the USB-C™ ports will be DP Alt Mode capable. Monitors can be connected to this ports in order to transmit video and audio signals. The maximum resolution of the output depends on the input signal. Specification • Connectors: external: 2 x USB 40 Gbps USB Type-C™ female (DP Alt Mode capable) 2 x Mini DisplayPort female (for DP Alt Mode function) internal: 1 x PCI Express x4, V4.0 • Chipset: Asmedia ASM4242 • Data transfer rate up to 40 Gbps • Resolution up to 7680 x 4320 @ 60 Hz (depending on the system and the connected hardware) • Power supply via PCI Express interface • Electrical power per port: max. 15 watt (5 V / 3 A) • Supports eXtensible Host Controller Interface (xHCI) specification 1.2 • Over current protection at the USB ports • Compatible with Thunderbolt™ 3 devices System requirements • Windows 11 • PC with one free PCI Express x4 / x8 / x16 / x32 slot • Motherboard with USB4 add-on card support • Graphics card with DisplayPort output (to support DP Alt Mode) Package content • PCI Express card • 2 x DisplayPort cable, length ca. 35 cm • Low profile bracket • User manual

Deze PCI Express-kaart van Delock breidt de pc uit met twee externe USB-C™-poorten. Er kunnen verschillende USB-apparaten op worden aangesloten, zoals USB-sticks, kaartlezers, externe behuizingen, enz. De kaart ondersteunt ook Thunderbolt™ 3-apparaten via de USB-C™-poorten. Video-uitgang via USB-C™-poort Met behulp van de meegeleverde kabels kunnen de Mini DisplayPort-aansluitingen van de PCI Express-kaart worden aangesloten op de DisplayPort-uitgangen van een grafische kaart op het moederbord. Hierdoor ondersteunen de USB-C™-poorten de DP Alt Mode. Op deze poorten kunnen monitoren worden aangesloten om video- en audiosignalen door te geven. De maximale resolutie van de uitgang is afhankelijk van het ingangssignaal.
