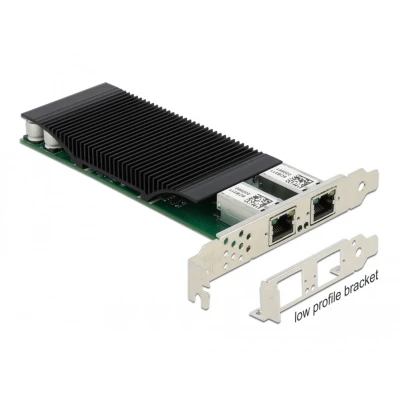

Delock PCI Express x4 Card to 2 x RJ45 Gigabit LAN PoE+ i350

Description The PCI Express card by Delock offers two network ports with a data transfer rate up to 1000 Mbps. PoE support The RJ45 ports support Power over Ethernet according to IEEE 802.3af / 802.3at, so power can be supplied to PoE-enabled devices, such as IP cameras or PoE splitters via the network cable. Specification • Connectors: external: 2 x Gigabit LAN RJ45 jack with screw-nut internal: 1 x PCI Express x4, V2.1 • Chipset: Intel i350 • Data transfer rate: Ethernet up to 10 Mbps (Half/Full Duplex) Fast Ethernet up to 100 Mbps (Half/Full Duplex) Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex) PCI Express x4 up to 16 Gbps • Suitable for Gigabit Ethernet vision systems • Supports IEEE 1588 PTP • Supports IEEE 802.3 / 802.3u / 802.3ab • Supports IEEE 802.1Q Virtual LAN (VLAN) • Supports IEEE 802.3az (Energy Efficient Ethernet) • Supports 9k Jumbo Frames • Supports PXE • Supports IEEE 802.3af PoE • Supports IEEE 802.3at PoE+ • Phantom power (Mode A, pairs 1/2 and 3/6) • Output power: max. 60 W total • LED indicator for link and activity System requirements • Windows 8.1/8.1-64/10/10-64 • PC with one free PCI Express slot Package content • PCI Express card • Low profile bracket • Driver CD • User manual
