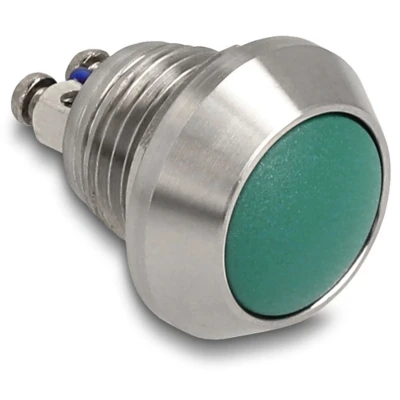

Delock Push Button for Installation 12 mm 2 x Screw Terminal green

Description This push button by Delock is ideal for installation in control panels, for example in industry, control or regulation technology. Push buttons can also be found in the automotive industry or the consumer sector. For example, as doorbells or triggers for lighting systems with timers such as those found in hallways. Button A so called button, or push button, returns to its initial position after being pressed. The NO (closer) contact establishes a connection between two contacts, while the NC (opener) contact releases them. Specification • Connectors: 2 x screw terminal • Switch type: 1NO + 1 NC • Switching voltage: AC 230 V~ / 3 A • Number of contacts: 2 • Number of open contact: 1 • Function: momentary • Actuator: domed • Operating temperature: -25 °C ~ 55 °C • Mounting hole diameter: ca. 12 mm • Hexagon nut spanner width: 14 mm • Mounting depth: ca. 15 mm • Thread size: M12 • Colour of push button: green • Material: stainless steel nickel plated • Mechanical life: 1,000,000 cycles • Electrical service life: 100,000 cycles • Protection class: IP65 • Dimensions (LxD): ca. 22.0 x 17.5 mm Package content • Push-button

Deze drukknop van Delock is ideaal voor inbouw in schakelpanelen, bijvoorbeeld in de industrie, besturings- of regeltechniek. Ook in de automobielbranche of in de consumentenmarkt vindt u dergelijke drukknoppen. Bijvoorbeeld als deurbel of schakelaar voor verlichting met tijdschakelaar, zoals die in trappenhuizen worden gebruikt. Een drukknop keert na bediening terug naar zijn uitgangspositie. Schakelaar (NO) en drukknop (NC): De schakelcontact (NO) verbindt twee contacten, terwijl de drukknop (NC) de verbinding verbreekt. • Drukknop Installation Technology Buttons / Switch 12 mm
