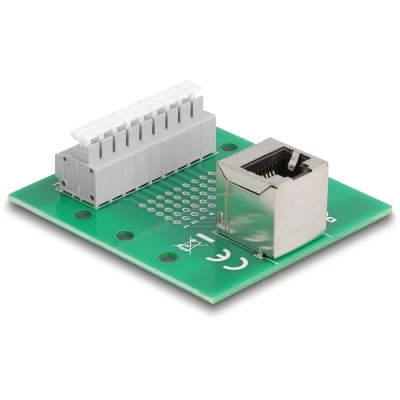

Delock RJ45 Buchse zu Terminalblock mit Drucktaster für Hutschiene ge

Description This adapter by Delock can be used to connect various network devices. Strands with stripped ends can be connected via the terminal block toolfree. DIN rail mounting With the clips included in the delivery content, the adapter can be attached to a 15 mm or 35 mm wide DIN rail. Specification • Connectors: 1 x RJ45 female angled 1 x 9 pin terminal block • Pin assignment: 1:1 • Pitch: 3.81 mm • Useable for a cable gauge from 24 to 12 AWG • DIN rail mounting: 15 mm and 35 mm • Operating temperature: -40 °C ~ 100 °C • Dimensions (LxWxH): ca. 60 x 53 x 18 mm System requirements • A free RJ45 plug • 15 mm or 35 mm DIN rail Package content • Adapter • 2 x DIN rail clip • 5 x screws

Aansluiting 1: 1 x RJ45-aansluiting Aansluiting 2: 1 x 9-pins aansluitblok
