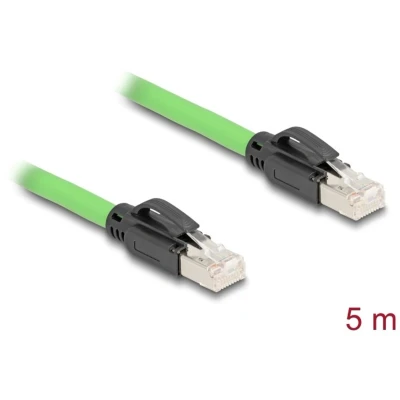

Delock RJ45 Network Cable Cat.6A plug to SF/UTP suitable for drag chains PUR (TPU) 5 m green

Onlinekabelshop

Description This network cable by Delock can be used to connect different networking devices, e.g. a NIC to a switch or a patch panel. Drag chain suitability The high-quality processed cable supports up to 10 million bending cycles, therefore it is also suitable for use in drag chains and other harsh environments. The cable sheath made of polyurethane (PUR) is oil and UV resistant, so the cable also meets the high requirements for industrial applications, e.g. in the tool and automation sector. Specification • Connectors: 2 x RJ45 plug • 1:1 connected • Cat.6A specification • Suitable for drag chains • SF/UTP • Shielding: aluminium foil, tinned copper braiding • Copper conductor • Cable gauge: 26 AWG (0.129 mm²) • Cable diameter: ca. 6.8 mm • Cable jacket material: PUR (TPU) • Max. number of bending cycles: 10,000,000 • Smallest bending radius: 54.4 mm with fixed installation 102.0 mm with flexible installation • Oil-resistant • UV-resistant • Flammability class: UL 94 • Operating temperature: -40 °C ~ 80 °C • Colour: green • Length incl. connectors: ca. 5 m System requirements • Patch cable

Kaufland

Delock - Patchkabel - RJ-45 (M) naar RJ-45 (M) - 5,0 meter - 6,8 mm - SF/UTP - CAT 6a - zonder haak - groen (80891)

Allekabels

Aders: CU - AWG 26/7 Aansluiting 1: RJ45 male Aansluiting 2: RJ45 male Mantel: PUR (TPU)
