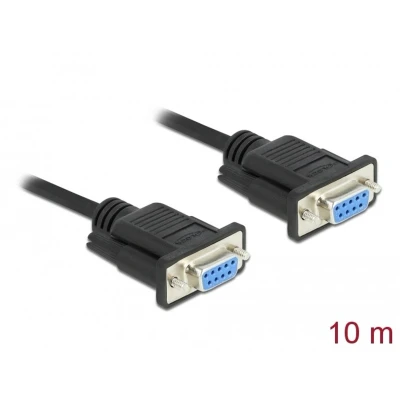

Delock Serial Cable RS 232 D Sub 9 female to null modem with narrow plug housing CTS / RTS auto control 10 m

Description This serial cable by Delock is a fully wired null modem cable with - CTS / RTS auto control - for printers, measuring instruments, converters, RS-232 hubs, patch panels etc. With this cable, two serial RS-232 devices can be connected to each other for data exchange. Mini D-Sub 9 connector These cables fit on any RS-232 port, as the mini D-Sub 9 connectors (44 x 33.3 x 15 mm) are small and compact. In this way, RS-232 connections can be used directly adjacent to each other. Specification • Connectors: 1 x serial D-Sub 9 female with screws 1 x serial D-Sub 9 female with screws • Cable gauge: 28 AWG • Full handshaking cable • Pin assignment: 7+8 – 1, 2 – 3, 3 – 2, 4 – 6, 6 – 4, 5 – 5, 1 – 7+8, shielded • Colour: black • Insulator: PVC • Screw type: #4-40 UNC • Cable diameter: ca. 5 mm • Cable length incl. connectors: ca. 10 m System requirements • A free D-Sub 9 male port Package content • Cable
