Delock Seriële adapter, Controlekaart

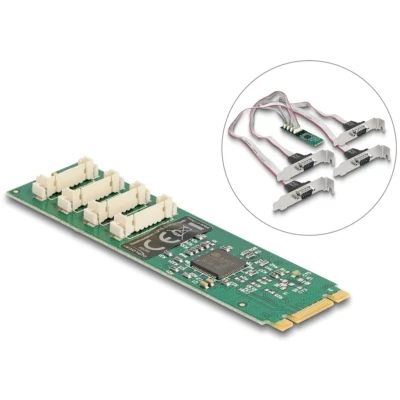

Description The M.2 to serial card by Delock expands the PC by four external RS-232 port. Different devices such as scanners, protocol converters, IoT devices etc. can be connected to the card. With the help of the included slot brackets and RS-232 cables, the M.2 card is suitable for installation into any computer case. Specification • Connectors: 1 x 59 pin M.2 key B+M male 4 x serial RS-232 DB9 male• Interface: PCIe 2.1 (x1)• Chipset: ASIX AX99100• Compatible with 16C950 UART• Data transfer rate up to 1 Mbps• Databits: 5, 6, 7, 8, 9• Flow control: none, Xon / Xoff, RTS / CTS• Parity: even, odd, none, mark, space• FIFO: 256 byte• Supports Active State Power Management (ASPM)• Supports Direct Memory Access (DMA)• Supports slow IrDA mode up to 115 Kbps• Form factor: M.2 2280• Dimensions (LxWxH): ca. 80 x 22 x 8 mm System requirements • Windows 8.1/8.1-64/10/10-64/11• Windows Server 2016/Windows Server 2019• A free M.2 key B or key M slot Package content • M.2 card• 1 x fixing screw for M.2 module• 4 x serial connecting cable (ca. 30 cm)• 4 x low profile bracket• 2 x standard bracket• Driver CD• User manual
