Delock Seriële kabel D Sub 25 mannelijk naar 9 vrouwelijk 5 m (5 m, VGA), Interfacekabel
Uitgelicht
|
17,98 |
Naar shop
|
| VERGELIJK ALLE AANBIEDERS (2) | ||
Beschrijving
Onlinekabelshop

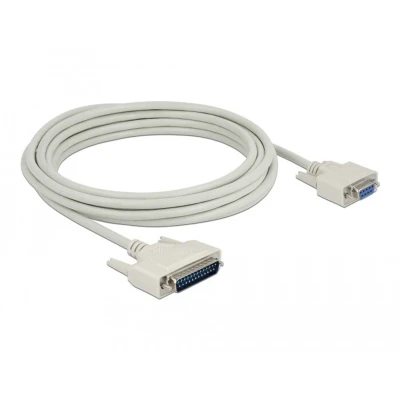

Description This serial cable by Delock is suitable as a connection cable for various devices with D-Sub 25 pin and D-Sub 9 pin connector.
Specification • Connectors:
1 x D-Sub 25 pin male >
1 x D-Sub 9 pin female
• Pin assignment:
D-Sub 9 --- D-Sub 25
1 --- 8
2 --- 3
3 --- 2
4 --- 20
5 --- 7
6 --- 6
7 --- 4
8 --- 5
9 --- 22
• Connectors with screws
• Cable gauge: 28 AWG
• Cable diameter: ca. 5 mm
• Operating temperature: 0 °C ~ 50 °C
• Fire-resistance rating: VW-1
• Length incl. connectors: ca. 5 m
• Colour: beige
System requirements • A free D-Sub 25 pin female
Package content
• Serial cable
Beschrijving
(1)
Description This serial cable by Delock is suitable as a connection cable for various devices with D-Sub 25 pin and D-Sub 9 pin connector. Specification • Connectors: 1 x D-Sub 25 pin male > 1 x D-Sub 9 pin female • Pin assignment: D-Sub 9 --- D-Sub 25 1 --- 8 2 --- 3 3 --- 2 4 --- 20 5 --- 7 6 --- 6 7 --- 4 8 --- 5 9 --- 22 • Connectors with screws • Cable gauge: 28 AWG • Cable diameter: ca. 5 mm • Operating temperature: 0 °C ~ 50 °C • Fire-resistance rating: VW-1 • Length incl. connectors: ca. 5 m • Colour: beige System requirements • A free D-Sub 25 pin female Package content • Serial cable
