Delock U.2 SFF 8643 adapter naar PCIe x4 of M.2 Key M slot met bevest

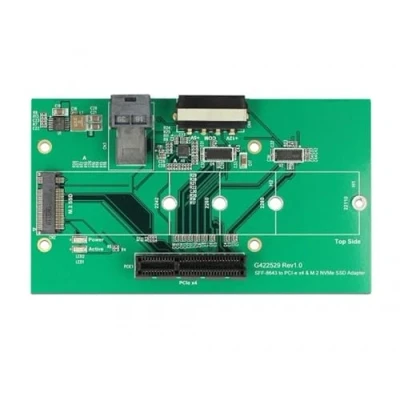

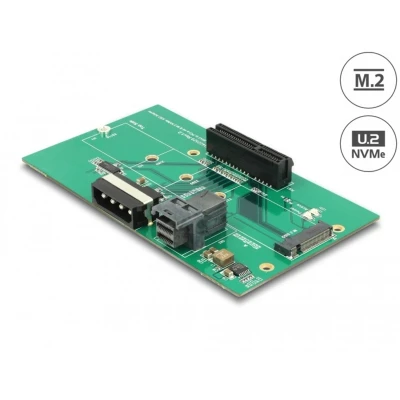

Description This adapter by Delock can be connected via U.2 interface to the system and provides a PCI Express x4 NVMe or an M.2 key M slot. Suitable cards or M.2 memory can be connected to the slots for the transmission of NVMe signals. Specification • Connectors: 1 x SFF-8643 female 1 x 4 pin power connector > 1 x PCI Express x4, V3.0 1 x 67 pin M.2 key M slot • Interface: PCIe • Supports M.2 modules in format 22110, 2280, 2260 and 2242 with key M or key B+M based on PCIe • Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported • 2 x LED indicator for power and activity • Supports NVM Express (NVMe) • Maximum output current: 4 A • Short circuit protection, over heating protection • ESD protection up to 2 kV • Dimensions (LxWxH): adapter: ca. 122 x 70 x 18 mm fixing plate: ca. 95 x 70 x 10 mm System requirements • Linux Kernel 3.17 or above • Windows 7/7-64/8.1/8.1-64/10/10-64/11 • A free U.2 SFF-8639 interface or • A free U.2 SFF-8643 interface Package content • Adapter • Fixing plate • Screws and spacer • User manual
