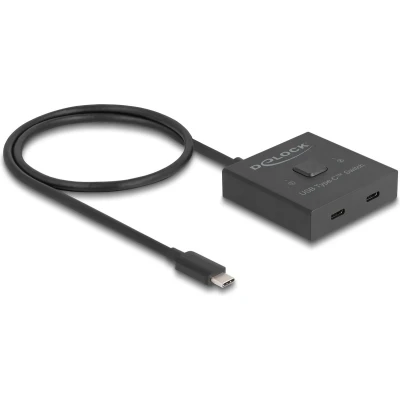

Delock USB 10 Gbps Type C™ Switch 2 auf 1 bidirektional 8K HQ

Onlinekabelshop.nl

Description This USB Type-C™ switch by Delock is a manual bidirectional switch for connecting different devices with USB Type-C™ port. This switch offers two different applications.Function 1One USB Type-C™ device like a monitor or external storage can be connected to two computers. With the push of a button, you canselect the computer that will be connected to the device.Function 2Two USB Type-C™ devices like a monitor or USB-PD charger can be connected to one computer. At the push of a button, the device that is connected to the computer can be selected.Flexible useThe switch supports graphics signals with up to 8K resolution, USB-C™ with up to USB 10 Gbps data rate and Power Delivery with up to 100 W. This makes it flexible to use in a wide range of applications.NoteThunderbolt™ devices or cables are not supported.Please use short length and high-quality cables, especially for higher resolutions. Specification • Connectors: Function 1 Input: 2 x USB 10 Gbps USB Type-C™ female Output: 1 x USB 10 Gbps USB Type-C™ male Function 2 Input: 1 x USB 10 Gbps USB Type-C™ male Output: 2 x USB 10 Gbps USB Type-C™ female• 1 x USB Type-C™ female (5 V power supply)• 1x button with LED indicator for 1 or 2• Resolution up to: 7680 x 4320 @ 60 Hz 3840 x 2160 @ 144 Hz (depending on the system and the connected hardware)• Data transfer rate up to 10 Gbps• USB Type-C™ Power Delivery (PD): up to 20 V 5 A, max. 100 W• Plastic housing• Colour: black• Dimensions (LxWxH): ca. 55 x 55 x 15 mm• Cable length without connectors: ca. 50 cm System requirements • PC or laptop with a free USB Type-C™ port• USB connection cables• Power source with a free USB Type-A port Package content • Switch bidirectional• USB power cable, length: ca. 1 m• User manual

Bol Partner

DeLOCK 18911. Hostinterface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, Hub-interfaces: USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Overdrachtssnelheid: 10000 Mbit/s, Maximale refresh snelheid: 144 Hz, Ondersteunde grafische resoluties: 3840 x 2160, 7680 x 4320. Soort voeding: USB, Spanning: 20 V, Output current: 5 A. Breedte: 55 mm, Diepte: 55 mm, Hoogte: 15 mm. Aantal per verpakking: 1 stuk(s), Type verpakking: Hangende doos Hostinterface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C Hub-interfaces: USB 3.2 Gen 2 (3.1 Gen 2) Type-C Aantal poorten: 2 10000 Mbit/s HD type: 8K Ultra HD 144 Hz USB Power Delivery (USB PD) Zwart Kunststof
