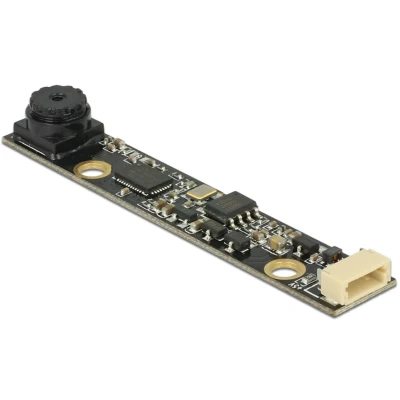

Delock USB 2.0 Kameramodul 1,92 Megapixel 45 edge Fixfokus

Description The USB 2.0 camera module by Delock offers a very compact design, high resolution and low power consumption.It is ideally suited for integration into devices.The use of a photosensitive sensor with back side illumination (BSI) expands the scope of this module. Specification • Connector: 5 pin SMT plug, 1 mm pitch (ACES 87214-0500), USB 2.0 high speed • Resolution: 1.92 Mega Pixel • With optical IR filter • Sensor: OV2643 • Supports resolutions: 720 p (1280 x 720) • Different fully-automated shutter priority: - Automatic exposure control (AEC) - Automatic white balance (AWB) - Automatic band filter (ABF) - Automatic black level calibration (ABLC) • Image quality controls including colour saturation, gamma, sharpness, lens correction, white pixel cancelling, noise cancelling, and automatic 50/60 Hz luminance detection • Supports scaling • Power consumption: Suspend: 9 mA Active: 100 mA ± 10 mA @ 720p • Operating voltage: 5 V • Operating temperature: 0 °C ~ 50 °C • Lense dimension: 1/4 " • Fix focus: 0.3 m ~ infinity • Lense: F/2.5 • Frame rates: 30fps @ HVGA, VGA, XGA, 720p, QVGA • Dimension (LxWxH): 60.0 x 8.0 x 6.3 mm System requirements • Windows Vista 7/8/10• MS DirectX 9.0c and above• Linux 2.6.15 and above with Video4Linux• CPU minimum P4 1.4 GHz, 128 MB RAM Package content • Camera module
