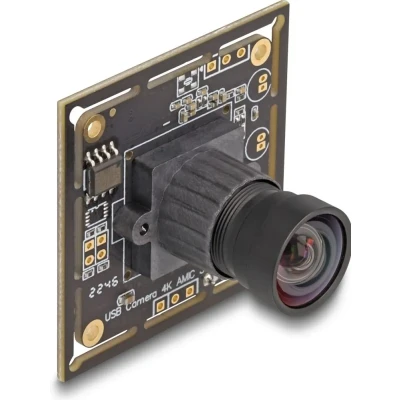

Delock USB 2.0 Kameramodul mit HDR 8,3 Megapixel IMX415 Sony® Starvis

Description This USB 2.0 camera module by Delock offers in a compact construction a high resolution and low power consumption. It is ideally suited for installation in industrial components like IPCs, embedded systems, sensors and in device manufacture. The use of a photosensitive sensor with back side illumination (BSI) expands the scope of this module.HDR - High Dynamic RangeAllows to increase the overall dynamic range to ensure more detailed images in scenes with bright and dark areas. Specification • Connector: 1 x 4 pin USB 2.0 pin header female SMT, pitch 1.5 mm• Resolution: 8.3 megapixel• Sensor: IMX415 Sony® Starvis™• With optical IR filter• Maximum resolution: UHD @ 30 fps (3840 x 2160)• Current consumption: ca. 100 mA• Operating voltage: 5 V DC• Operating temperature: -10 °C ~ 70 °C• Operating humidity: ≤ 80 %• Sensor size: 1/2.8″• Sensitivity: 1.2 V / lx s• Signal-to-noise ratio (SNR): ca. 41 dB• Dynamic range: 72 dB• Fix focus: 0.3 m - infinite• Aperture: F/2.7• Lens thread: M12• Frame rates: all resolutions MJPG 30 fps• Dimensions (LxWxH): ca. 38.0 x 38.0 x 22.3 mm System requirements • Device with UVC support• Windows 10/10-64/11• DirectX 9.0c or above• Linux Kernel 2.6.15 and above with Video4Linux Package content • Camera Module

DeLOCK 12073 webcam 8.3 MP 3840 x 2160 pixels USB 2.0 Black
