DeLOCK USB 3.2 Gen 1 adapter Pin Header female to internal Key A

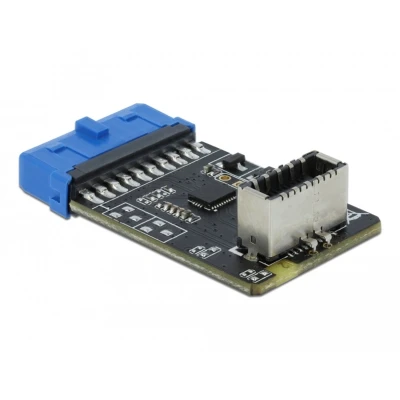

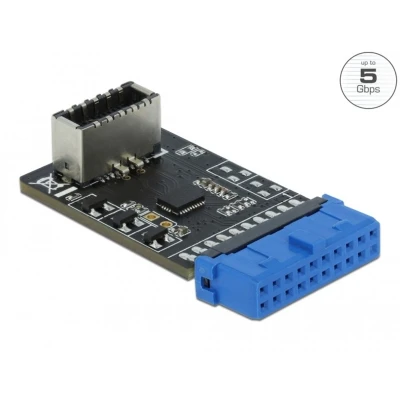

Description This adapter by Delock converts the internal USB pin header male into the internal USB key A female. Various cables can be connected to the adapter, to provide either one USB Type-C™ or two USB Type-A interface. Active adapter Due to the built-in chipset, USB Type-C™ functions such as channel configuration (CC1 and CC2) can be used. Specification • Connectors: 1 x 19 pin SuperSpeed USB (USB 3.2 Gen 1) pin header female 1 x SuperSpeed USB (USB 3.2 Gen 1) key A 20 pin female • Data transfer rate up to 5 Gbps • Electrical power: max. 4.5 watt (5 V / 900 mA) • Dimensions (LxWxH): ca. 40 x 22 x 11 mm System requirements • Linux Kernel 3.3 or above • Windows 8.1/8.1-64/10/10-64 • Motherboard with a free 19 pin USB 3.0 pin header male Package content • Adapter
