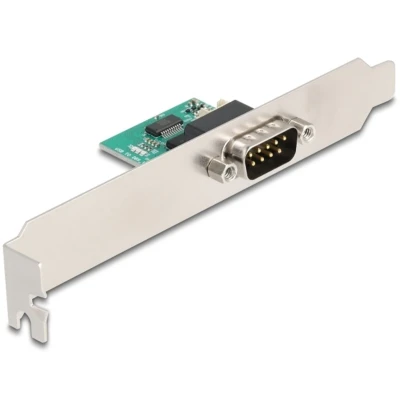

Delock USB to RS 232 Converter FTDI FT231XS 2.0 pin header male D Sub 9 with standard bracket and cable 30 cm
Uitgelicht
|
44,98 |
Naar shop
|
| VERGELIJK ALLE AANBIEDERS (3) | ||
Beschrijving
Onlinekabelshop
Description The USB 2.0 to RS-232 converter by Delock expands the computer via an internal USB port by a serial RS-232 standard interface. The small adapter board is ideal for mounting in housings or on slot brackets.
Flexibility with RS-232
The data transmission can be easily and flexibly adapted to serial devices and PC applications. The converter also provides functions such as remote wake-up, power management, modem and extensive compatibility.
Specification • Connectors:
1 x USB 2.0 pin header male 4 pin
1 x serial RS-232 D-Sub 9 male with nuts
Cable:
1 x USB 2.0 Pin header female 4 pin
1 x USB 2.0 Pin header female 5 pin
• Chipset: FTDI FT231XS
• Supports: UHCI / OHCI / EHCI
• Data transfer rate up to 921.6 Kbps
• FIFO: 512 Byte - RX
• FIFO: 512 Byte - TX
• Databits: 7, 8
• Stop bits: 1, 2
• Parity: even, odd, none, mark, space
• Flow control: none, RTS / CTS, DSR / DTR, XON / XOFF
• Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
• 3 x LED indicator
• ±15 kV ESD protection for all serial signals
• Operating temperature: -40 °C ~ 85 °C
• Dimensions (LxWxH): ca. 35 x 31 x 15 mm
• Plug & Play
• Cable length without connectors: ca. 30 cm
System requirements • Linux Kernel 2.6 or above
• Windows 10/10-64/11
• Motherboard with a free 4 / 5 pin USB 2.0 pin header male
Package content
• USB 2.0 UART converter
• USB connection cables
• 1 x standard bracket
Beschrijving
(2)
Description The USB 2.0 to RS-232 converter by Delock expands the computer via an internal USB port by a serial RS-232 standard interface. The small adapter board is ideal for mounting in housings or on slot brackets. Flexibility with RS-232 The data transmission can be easily and flexibly adapted to serial devices and PC applications. The converter also provides functions such as remote wake-up, power management, modem and extensive compatibility. Specification • Connectors: 1 x USB 2.0 pin header male 4 pin 1 x serial RS-232 D-Sub 9 male with nuts Cable: 1 x USB 2.0 Pin header female 4 pin 1 x USB 2.0 Pin header female 5 pin • Chipset: FTDI FT231XS • Supports: UHCI / OHCI / EHCI • Data transfer rate up to 921.6 Kbps • FIFO: 512 Byte - RX • FIFO: 512 Byte - TX • Databits: 7, 8 • Stop bits: 1, 2 • Parity: even, odd, none, mark, space • Flow control: none, RTS / CTS, DSR / DTR, XON / XOFF • Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND • 3 x LED indicator • ±15 kV ESD protection for all serial signals • Operating temperature: -40 °C ~ 85 °C • Dimensions (LxWxH): ca. 35 x 31 x 15 mm • Plug & Play • Cable length without connectors: ca. 30 cm System requirements • Linux Kernel 2.6 or above • Windows 10/10-64/11 • Motherboard with a free 4 / 5 pin USB 2.0 pin header male Package content • USB 2.0 UART converter • USB connection cables • 1 x standard bracket
AllekabelsDe Delock USB 2.0-naar-RS-232-converter breidt de computer via een interne USB-poort uit met een seriële RS-232-standaardsnittstelle. Het kleine adapterprintplaatje is zeer geschikt voor montage in behuizingen of op slotpanelen. Flexibiliteit met RS-232: De gegevensoverdracht kan eenvoudig en flexibel worden aangepast aan de seriële apparaten en pc-applicaties. De converter biedt bovendien functies zoals Remote Wake-Up, Power Management, Modem en een uitgebreide compatibiliteit. • Linux Kernel 2.6 of hoger • Windows 10/10-64/11 • Moederbord met een vrije 4/5-pins USB 2.0-pinheader • USB 2.0 UART-converter • USB-aansluitkabel • 1 x standaardpaneel Adapters & Converters USB USB 1.1 / USB 2.0
