Delock WLAN 802.11 ac/ax/a/h/b/g/n Antenne MHF® I aansluiting 0,5 1

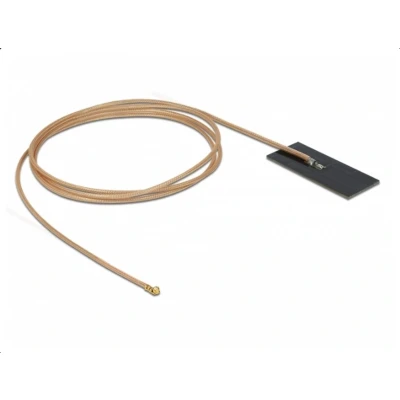

Description This antenna by Delock allows the usage of the 2.4 GHz + 5 GHz WLAN bands indoors. Specification • Connector: 1 x I-PEX Inc., MHF® I plug• Frequency range: 2400 MHz - 2500 MHz 5150 MHz - 5875 MHz• Bluetooth, WLAN 2.4 / 5.0 GHz, ZigBee 2.4 GHz, ISM• Antenna gain: 0.5 - 1.2 dBi• VSWR: 2.5• Impedance: 50 Ohm• Mounting type: self adhesive• Operating temperature: -10 °C ~ 55 °C• Housing material: FR4• Colour: black• Cable type: coaxial• Cable type: RG-178• Cable colour: black• Cable diameter: ca. 1.8 mm• Cable attenuation: 2.9 dB @ 2.4 GHz per meter• Smallest bending radius: 7.5 mm• Dimensions (LxW): ca. 40.00 x 14.65 mm• Cable length incl. connector: ca. 1 m System requirements • Device with one free I-PEX Inc., MHF® I port Package content • Antenna

DELOCK WLAN 802.11 ac/ax/a/h/b/g/n antenne MHF I stekker 0,5-1,2dBi RG-178 1m PCB interne kleefmontage
