Delock WLAN antenne MHF/ U.FL LP 068 802.11 compatible connector ac/a

Onlinekabelshop.nl

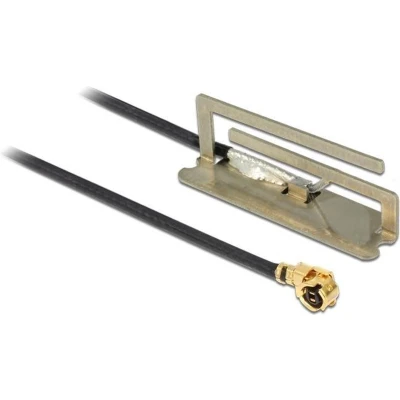

Description This antenna by Delock allows the usage of the 2.4 GHz + 5 GHz WLAN bands indoors. Specification• Connector: 1 x I-PEX Inc., MHF® I plug• Frequency range: 2400 MHz - 2500 MHz 5150 MHz - 5875 MHz• Bluetooth, WLAN 2.4 / 5.0 GHz, ZigBee 2.4 GHz, ISM• Antenna gain: 1.6 dBi• Impedance: 50 Ohm• VSWR: 2.0• Operating temperature: -10 °C ~ 55 °C• Cable type: coaxial• Cable type: 1.13• Cable colour: black• Cable diameter: ca. 1.13 mm• Cable attenuation: 3.2 dB @ 2.4 GHz per meter• Smallest bending radius: 4.5 mm• Dimensions (LxWxH): ca. 21.5 x 7.0 x 6.0 mm• Length incl. connectors (L): ca. 45 cm System requirements • Device with one free I-PEX Inc., MHF® I port Package content • Antenna

Bol Partner

DeLOCK 86389. Antenne versterkingsniveau (max): 1,6 dBi, Frequentieband: 5.8 GHz, Netwerkstandaard: IEEE 802.11a,IEEE 802.11b,IEEE 802.11g,IEEE 802.11h,IEEE 802.11n. Aansluiting antenne: F-type. Breedte: 60 mm, Diepte: 215 mm, Hoogte: 70 mm
