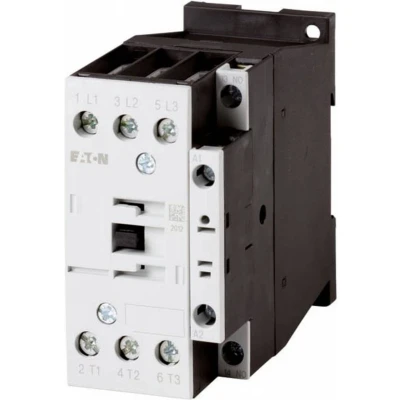

Eaton DILM17-10(230V50/60HZ) Vermogensbeveiliging 3x NO 7.5 kW 1 stuk(s) Eaton DILM17-10(230V50/60HZ) Vermogensbeveiliging 3x NO 7.5 kW 1 stuk(s) Technische spec.: Aansluiting (componenten): Schroeven · Aantal polen: 3-polig · Contactsoort (LoV): 3x NO · Overige technische gegevens: Stroomtype: wisselstroom Spanningstype voor bediening: AC Nominaal bedrijfsvermogen Ie bij AC-4, 400 V: 4,5 kW Nominale bedrijfsstroom Ie bij AC-1, 400 V: 40 A Nominale bedrijfsstroom Ie bij AC-3, 400 V: 18 A Nominale bedrijfsstroom Ie bij AC-4, 400 V: 10 A Koppelbaar: nee · Regelspanning (max.): 230 V/AC · Type hulpcontact: 1x NO · Vermogen: 7.5 kW Features Highlights Leveromvang
BengshopEATON MAGNEETSCHAKELAAR 3P AC3-18A-7,5KW(400V) HULPCONTACT 1M SPOELSPANNING 230V50/60HZ SCHROEFKLEM Algemene specificaties Productnaam: Eaton Moeller series DILM magneetschakelaar Catalogusnummer: 277012 EAN: 4015082770129 Productlengte/-diepte: 97 mm Hoogte van product: 85 mm Breedte van product: 45 mm Gewicht van product: 0.428 kg Certificering: IEC/EN 60947-4-1 VDE 0660 UL UL Category Control No.: NLDX UL 60947-4-1 CE CSA Class No.: 2411-03, 3211-04 CSA File No.: 012528 UL File No.: E29096 CSA IEC/EN 60947 CSA-C22.2 No. 60947-4-1-14 Opmerkingen bij catalogus: Contacten volgens EN 50012 Modelcode: DILM17-10(230V50/60HZ)
