ESATAp naar SATA bracket Delock

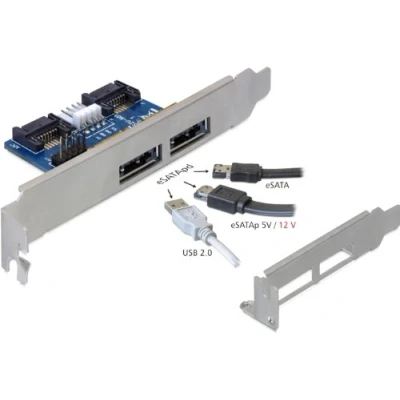

Description This slot bracket enables you to lead out the internal ports, in order to connect devices to the externally available eSATApd ports. The eSATApd port provides a voltage supply of 5 V and 12 V, thus you can connect also 2.5″ and 3.5″ HDDs to this interface, by using special Delock products, like eSATApd cable or docking stations. Specification • Slot bracket for installation into a PC slot • Internal: 1 x 9 pin USB, 2 x SATA, 1 x power 4 pin • External: 2 x Power Over eSATA 5 V / 12 V (eSATApd) • Plug & Play • OS independent, no driver installation necessary System requirements • PC with one free slot • Two internal SATA ports • One internal USB port Package content • Rear bracket • Low profile bracket • 2 x SATA cable • USB cable • Power cable • User manual
