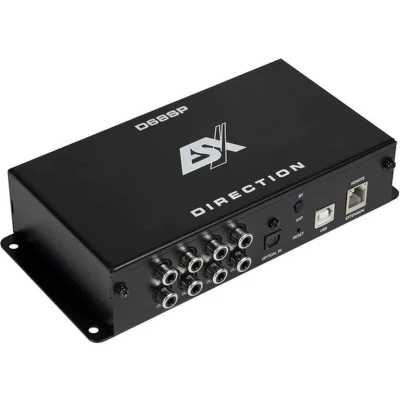

ESX Direction D68SP DSP processor 6 kanaals met 8 uitgang

Met de D66SP & de D68SP brengt ESX CAR AUDIO SYTEMS GERMANY 2 zeer compacte DSP processors op de markt met de allernieuwste technieken. Highlight Car & Hifi uitgave 04/2021 Verbazingwekkend hoogwaardige DSP processor in de instapklasse qua prijs. EISA AWARD 2021 - 2022 IN CAR SOUND PROCESSOR - BESTE PRODUCT ESX DIRECTION D68SP 6 kanaals DSP processor Hi-RES audio bereik 6 kanaals high level ingangen (via molex stekker) 6 kanaals low level RCA ingangen (balanced) 8 kanaals low level RCA uitgangen 6 volts RMS USB type B voor PC  software Optische ingang stereo S/PDIF 192 kHz / 24 bits RJ45 aansluiting voor remote controller Stroom ingang met remote uitgang & switch pin Afm: 105 x 40 x 185 mm Optioneel: RC-DQ lcd remote controller (79,- euro) BT-D bluetooth module (79,- euro) Voor DSP app info zie product info link Extra informatie: DSP Chip from Analog Devices™ 32 Bit, 294 MHz, Full HD Audio 96 kHz Signal Converter from AKM Velvet Sound™ A/D 32 bit, D/A 32 bit HP/LP/BP @ 6-48 dB, Phase Shift, Time Correction 0 ~ 20 ms/0.01 ms steps Up to 248 output EQs, 120 input EQs (PEQ/HSLF/LSLF) +/- 12 dB, 0.5 dB steps) Input Mixer, Subwoofer Controller, Preset Auto Switch, Priority Input Mode Input Sensitivity: Low Level 1 ~ 6 V/RMS, High Level 1 ~ 15 or 15 ~ 45 V/RMS Signal-to-noise Ratio (A-weighted): Analog Input 106 dB, Digital Input 111 dB Optical S/PDIF Input Total Harmonic Distortion: Analog Input

Productinfo: 6 x RCA/ RCA input, balanced 6 x high level input (via Molex connector) 1 x Optical stereo, S/PDIF 192 kHz, 24 bit 1 x USB type B for PC software 1 x RJ45 for remote control/extension 1 x power input incl. REM OUT and MODE switch input 8 x RCA/RCA @ 6 V RMS 105 x 40 x 185 mm DSP chip from Analog Devices™ 32 bit, 294 MHz, Full HD Audio 96 kHz. Signal converter from AKM Velvet Sound™ A/D 32 bit, D/A 32 bit HP/LP/BP @ 6-48 dB, phase shift, delay correction 0 ~ 20 ms / 0.01 ms steps. Up to 248 output EQs, 120 input EQs (PEQ/HSLF/LSLF) +/- 12 dB, 0.5 dB steps) Input mixer, subwoofer control, preset auto switch, priority input mode Input sensitivity: low level 1~6 V/RMS, high level 1~15 or 15~45 V/RMS Signal to Noise Ratio (A-weighted): Analog Input 106 dB, Digital Input 111 dB Optical S/PDIF input S/PDIF 192 kHz, 24 bit Distortion factor: Analog input
