GNSS GPS Antenne FAKRA Delock

Onlinekabelshop.nl

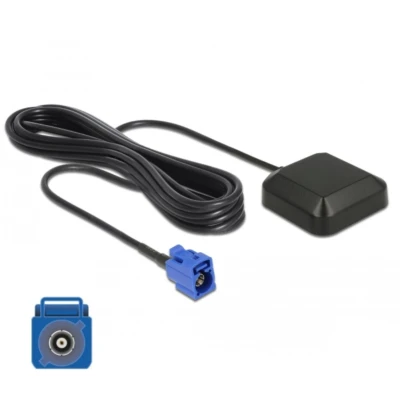

Description This GNSS antenna from Navilock can be used on an existing GNSS receiver, car radio or vehicle multimedia receiver with FAKRA C connection. The antenna is waterproof and can therefore be used temporarily outside the vehicle. Specification• Connector: 1 x FAKRA C Jack• FAKRA C: RAL 5005 Signal blue• Frequency range: 1575.42 MHz• GALILEO: E1 1,5754200 GHz, GPS: L1, 1.5754200 GHz• Band width: 2 MHz• Antenna gain: 27 dBi• Impedance: 50 Ohm• Mounting: Magnet base• Housing material: ABS• Colour: black• Protection class: IP67• Cable type: RG 174/U• Cable colour: black• Cable attenuation: 1.1 dB @ 1500 MHz per meter• Cable length incl. connector: ca. 3 m• Dimensions (LxWxH): 40.5 x 38.0 x 12.0 mm• DC input: 3.0 - 5.5 V• Power consumption: 11 mA @ 3.0 V typ. 15 mA @ 3.0 V max.•Weight: 150 g System requirements • Device with a free FAKRA C plug Package content • Antenna

Bol Partner

Navilock NL-69AT. Versterking antenne (max): 27 dBi, Impedantie: 50 Ohm. Aansluiting antenne: FAKRA C, Internationale veiligheidscode (IP): IP67, Lengte snoer: 3 m. Type stroombron: DC, Stroomverbruik: 15 mA, Ingangsspanning: 3 - 5.5. Breedte: 38 mm, Diepte: 40,5 mm, Hoogte: 12 mm. Type verpakking: Polybag

Allekabels

Aansluiting: FAKRA C female Bandbreedte: 2 MHz Frequentie: L1, 1575.42 MHz Impedantie: 5 Ohm Versterking: 27 dBi Kabellengte: 5 meter
