GNSS Ontvanger Navilock

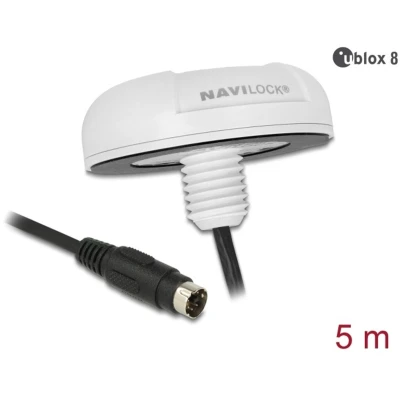

Description The MD6 serial multi GNSS Receiver based on u-blox 8 chipset has a built-in antenna for high sensitivity. You can use this GNSS Receiver with a laptop and a suitable routing software for navigation. The MD6 universal connector enables the connection of optional USB or serial connecting cables. The NL-8022MP GNSS receiver is especially designed for installation on a white ground (boat, camper, bus etc.) It is unremarkable and fits into the vehicle concept due to its housing design. Specification • Connector: MD6 Navilock plug (RS-232) (USB or serial cable are optional available) • Chipset: u-blox 8 UBX-M8030-KT • Frequency: GPS: L1, 1575.4200 MHz GLONASS: L1, 1602 (k x 0,5625) MHz BEIDOU COMPASS: B1, 1561.0980 MHz GALILEO: E1, 1575.4200 MHz QZSS: L1, 1575.4200 MHz • Accepts the signals of up to 72 satellites at the same time • Supports AssistNow online / offline, SBAS (WAAS, EGNOS, QZSS and MSAS) • Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG • Auto Baud Rate up to 115200 bps • PPS signal on pin 6 (LVTTL 3.3 V) • Update rate: single GNSS: 18 Hz (e.g. GPS solo) multi GNSS: 10 Hz (e.g. GPS+GLONASS) • Sensibility max. -167 dBm • IPX7 protection class • Operating temperature: -20 °C ~ 60 °C • Power supply: 5 V DC • Current consumption: max. 45 mA • Cold start in ca. 26 seconds • Hot start in ca. 1 second • Positioning accuracy: 2.5 m CEP (Circular Error Probable) and 2 m CEP with SBAS • Cable length: ca. 5 m • Dimensions (Ø x H without screw thread): ca. 62 mm x 21 mm Microsoft Sensor and Location Platform (Website ()) • Profit from Windows applications (e.g. weather, maps, etc) • Supporting the GNSS location platform API (32 bit) System requirements • Windows Vista/7/8/8.1/10, Linux Kernel 2.6, Mac OS X • MD6 connection cable Package content • MD6 serial receiver • Mounting material: stainless steel nut and washer • Navilock support CD incl. driver and user manual

Type: NL-8022MP Aansluiting 1: MD6 connector GPS frequentie: L1, 1575.4200 MHz Gevoeligheid: Maximaal -167 dBm Satellieten: Maximaal 72 tegelijk
