GPS PDA aansluitkabel USB. Delock

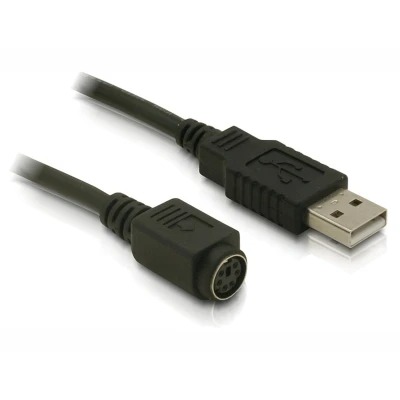

Description Navilock GNSS receiver possess an MD6 universal connector. The pin assignment of this connector is identical with chipsets by u-blox, Sony, GLONASS and SiRF. In order to connect the GNSS receiver to a USB port you need this specific connecting cable. The USB connector provides power to the GNSS receiver and contains the data channels. For integration into the device features of a notebook or tablet PC you need to install the enclosed Prolific USB to serial driver. It will provide a virtual serial port on your device. Specification • For connection to USB port • Internal serial to USB bridge (driver enclosed) • MD6 Navilock GNSS receiver female jack 6 pin • Chipset: Prolific PL-2303 TA • cable length 52 cm (connectors included) System requirements • Windows XP/Vista/7/8/10 • For devices with OTG function and optional OTG adapter: Windows 10 Package content • Connection cable for PDA GPS Receiver

Navilock - GPS-kabel - voor Navilock NL-8003P MD6 PPS Multi GNSS-ontvanger, NL-8012U Multi GNSS-ontvanger (61264)
