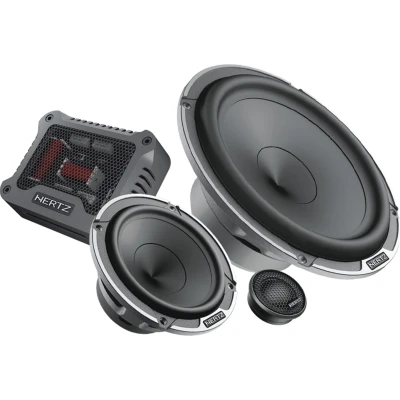

Hertz MPK 163.3 PRO luidsprekers

MILLE serie luidsprekers bieden het beste wat het Italiaanse merk Hertz heeft qua sound en dynamiek met ongelovelijke sound weergaves en precisie. Hertz Mille MPK 163.3 PRO 16,5 cm high end  3-weg compo luidspreker set 165 mm woofer/ 70 mm middentoner & 28 mm tetolon tweeter Frequentie bereik: 40 - 22.500 Hz Crossover frequentie: 450 /5500 Hz / 12dB / 6dB Crossover: 3 weg passief Gevoeligheid: 92 dB 150 watts RMS / 300 watts MAX Impedantie: 4 ohms Inclusief grille set & accessoires Extra informatie: MP 25.3: 1. Tetolon fiber soft dome, for a natural yet detailed reproduction of musical nuances. 2. “Center Tuning Duct” geometry, for lower resonance frequency and reduced harmonic distortion. 3. High density flux Neodymium magnet, optimized for utmost control during high energy dynamic transients in the mid-high frequency range. 4. 25mm ferrofluid-cooled mobile voice coil. 5. Rear chamber filled with selected damping material and sized for lower Fs, to ensure a well damped high pass frequency roll-off, allowing low cut-off frequency crossover point. 6. Faceplate featuring FEM (Finite Element Modeling) optimized geometry, for high linearity in off-axis installations. 7. Wide array of installation accessories, for an easy OEM integration. MP 70.3: 1. Symmetrical dual Neodymium magnet structure specifically developed with FEM (Finite Element Modeling) simulations, for superior dynamics and control. 2. 20 mm CCAW double layer voice coil wound on a Polyamide former with 8 decompression holes, for exceptional power handling and compression-free reproduction. 3. Exponential V-cone® profile pressed-pulp cone with cotton fibers, combining stiffness and lightweight for a wide frequency response. Cone profile geometrically optimized for utmost linearity and dispersion in the mid-high frequency range. 4. “Boundary Free” rubber surround, for better efficiency and wider mid-bass frequency. 5. Anti-vibration rubber magnet cover, to damp spurious vibrations, removable to fit limited mounting depth installations. 6. Acoustically transparent aluminium alloy basket with elegant diamond cutting and featuring the aluminium Hertz logo. 7. Full protection metal mesh grill featuring the aluminium Hertz logo and attractive look mineral powder coated inner grill are included for several install combinations. MP 165.3: 1. Pure copper voice coil wound on a Polyamide former for high power handling combined with very low intermodulation distortion of vocals. 2. Exponential V-cone® profile pressed-pulp cone with cotton fibers, combining stiffness and lightweight for a wide frequency response. Cone profile geometrically optimized for utmost linearity and dispersion in the mid frequency range. 3. “Boundary Free” rubber surround, for improved efficiency and wider mid-bass frequency. 4. High density flux ferrite magnet combined with very low carbon content iron plates, for low distortion at high power levels. 5. Low mounting depth, acoustically transparent aluminium alloy basket with elegant diamond cutting and featuring the aluminium Hertz logo. 6. Full protection metal mesh grill featuring the aluminium Hertz logo and attractive look mineral powder coated inner grill are included for several install combinations. MPCX 3.3: 1. Two-position (0 / +2 dB) switch for tweeter & midrange level adjustments, to fine-tune the transducers emission according to their installation position. 2. 100V extremely high quality bi-metallized polyester film capacitors in the tweeter section, for maximum sound transparency and neat hi-frequencies. 3. 1mm pure copper wire low series resistance inductors, for low dissipation losses on the woofer section where high transient currents are demanded. 4. Compact footprint design for easy installation, with top vent grille for efficient heat dissipation.

Componentenspeakers Hertz MPK 163.3 PRO. Het driewegsysteem MPK 163.3 is ontworpen voor wie het beste zoekt, maar tegen een redelijke prijs. De midden speaker MP 70.3 met een dubbele neodymiummagneet in de spoel creëert een verfijnd middengebied, ideaal om te combineren met de krachtige bas-midden speaker MP 165.3, evenals het gedetailleerde hoge bereik van de tweeter MP25.3. De 20 mm spoel van de MP 70.3 maximaliseert de dynamiek, terwijl het V-cone® membraanprofiel de stralingshoek verhoogt en een bredere spreiding naar het lage frequentiebereik mogelijk maakt. De MPCX 3.3 crossover biedt geoptimaliseerde frequentie-deling punten om het opmerkelijke bereik van het middengebied te benutten met behulp van zorgvuldig geselecteerde componenten. Belangrijkste kenmerken van de tweeters Hertz MP 25.3: * Tetronvezel softdome voor een natuurlijke en gedetailleerde weergave. * "Centrale afstemming" geometrie voor een lagere resonantiefrequentie en verminderde harmonische vervorming. * Neodymiummagneet met hoge fluxdichtheid, geoptimal
