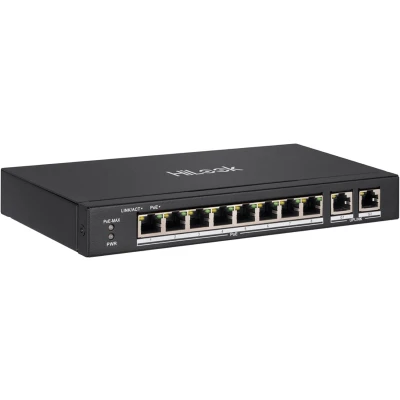

Hilook by Hikvision NS-0310P-60 POE Netwerkschakelaar

Introduction The HiLook NS-0310P-60 is a reliable unmanaged PoE switch for small to medium-sized IP camera installations. With 8 Fast Ethernet PoE ports, 2 Gigabit uplinks, and a total PoE budget of 60 watts, this switch is ideal for stable CCTV setups. Thanks to the long-range PoE feature, cameras can be connected from up to 250 meters away without additional equipment. Pros 8 Fast Ethernet PoE ports for IP cameras 2× Gigabit RJ45 uplink ports Total PoE budget of 60 W (max. 30 W per port) Supports IEEE 802.3af and 802.3at Long-range PoE up to 250 meters (Extend mode) Fanless metal housing: quiet and robust 6 kV surge protection on PoE ports Plug-and-play, no configuration needed What's in the box HiLook NS-0310P-60 PoE switch Power adapter (48 VDC) Manual What you need to arrange yourself IP cameras with PoE support Network cables (CAT5e or CAT6) Optional wall or patch cabinet mounting Applications Small to medium-sized IP camera systems Shops, offices and commercial properties Situations with long cable distances up to 250 meters CCTV installations without the need for network management Technical specifications Specification Value Model NS-0310P-60 Type Unmanaged Layer-2 PoE switch PoE ports 8 × 10/100 Mbps Uplink ports 2 × Gigabit RJ45 PoE standard IEEE 802.3af / 802.3at Max. PoE per port 30 W Total PoE budget 60 W Switching capacity 5.6 Gbps MAC address table 16K Long-range PoE Up to 250 m (ports 1–8) Housing Metal, fanless Dimensions 217.6 × 103.35 × 27.8 mm Power supply 48 VDC Max. consumption 65 W Operating temperature -10 °C to +40 °C FAQ 1. Is this switch managed? No, this is an unmanaged switch. Connect it and you're done. 2. Can I use all ports at maximum power simultaneously? No, the total PoE budget is 60 W. This is automatically distributed among the connected devices. 3. What does the long-range function do? In Extend mode, the switch supports PoE and data up to 250 meters, ideal for cameras at greater distances. 4. Is this switch suitable for PTZ cameras? Yes, as long as the total PoE consumption remains within the 60 W budget. Looking for an affordable and reliable PoE switch for IP cameras ? The HiLook NS-0310P-60 is a solid foundation for any small CCTV installation. Order now and get started quickly.
