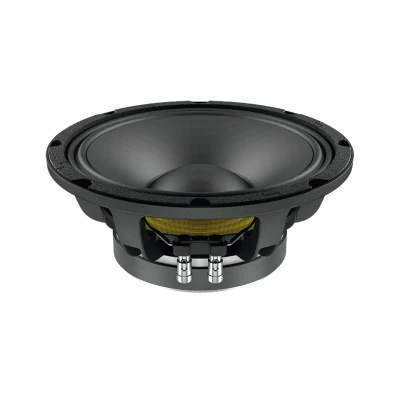

Lavoce WAF102.50 10" Woofer Ferriet Magneet Aluminium Basket Driv

DJGear

LAVOCE WAF102.50 10" Woofer Ferrite Magnet Aluminium Basket Driver 250 W AES, 8 ohms, 97 dB, 70-4000 Hz Type: 25 cm woofer (10") Rated power: 250 W AES Program power: 500 W Impedance: 8 ohms Sensitivity: 97 dB Frequency range: 70-4000 Hz Voice coil diameter: 6.5 cm (2.5") Chassis material: Aluminum Magnet material: Ferrite Weight: 4.58 kg GENERAL SPECIFICATIONS Nominal diameter mm (in.) 250 (10) Nominal impedance Ω 8 Minimum impedance Ω 6,7 Program power (1) W 500 AES Power rating (2) W 250 Sensitivity (3) dB 96,5 Frequency range Hz 70 ÷ 4500 Voice coil diameter mm (in.) 65 (2.5) Chassis material Aluminium Magnet material Ferrite Magnet dimensions OD x ID x h mm (in.) 156 x 80 x 20 (6.1 x 3.1 x 0.8 ) Coil material CCAW Former material Glass fiber Cone material Water Proof Treated Paper Surround material Polycotton Xmax (4) mm (in.) 5 (0.2) Xmech (5) mm (in.) 9 (0.35) Gap height mm (in.) 8 (0.3) Voice coil winding height mm (in.) 14 (0.55) SMALL SIGNAL PARAMETERS DC resistance Re Ohm 5.7 Resonance frequency Fs Hz 70 Moving mass Mms g (oz) 34 (1.2) Compliance Cms mm/N 0,14 Force factor BxL N/A 14,6 Mechanical Q-factor Qms 4,0 Electrical Q-factor Qes 0,42 Total Q-factor Qts 0,38 Equivalent air volume Vas l (ft3 ) 28 (0.99) Voice coil Inductance Le mH 0,68 Diaphragm area Sd cm2 (in.2 ) 353 (54.72) Reference efficiency Eta 0 % 2,17

Conrad

WAF10 2.50 10 woofer, ferriet, Alukorb.De teksten voor dit artikel zijn automatisch vertaald....
