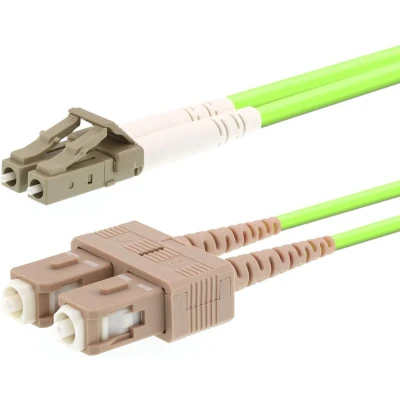

Logon Fiber Patch Cable 50/125 Lc/Sc 10M Om5

Model: Logon Professional AL5LCSC10I/5I (10m) Wideband OM5 bend insensitive Multimode Fibre LC/SC WideBand OM5 Bend Insensitive Multimode Fibre is a 50µm laser-optimized multimode fibre designed for short wavelength division multiplexing (SWDM) applications. Unlike traditional OM4 fibre with high bandwidth performance in a narrow band centred at 850nm, WideBand OM5 Bend Insensitive Multimode Fibre delivers OM4 performance in the 850-950nm window while maintaining compatibility with current multimode fibres. WideBand OM5 and multi-wavelength transceivers are a viable solution for future 100Gb/s and 400Gb/s multiwavelength systems. WideBand OM5 Bend Insensitive Multimode Fibre complies with or exceeds ISO/IEC 11801 OM5 specification, IEC 60793-2-10 type A1a.4 Optical Fibre Specification, and TIA/EIA-492AAAE detail specification. Features Designed for multi-wavelength systemsDuplex transmission of 40/100/400 Gb/s using SWDM technologyMaintaining compatibility with current OM4 multimode optical fibreSupports today's application including 100Gb/s EthernetVery low macro-bending sensitivitySupports installation with small cable bend radii and compact organizers.Coated with proprietary dual layer UV curable acrylateOptimized performance in tight-buffer cable applicationsHigh resistance to micro-bending Stable performance over a wide range ofenvironmental conditionsLC/SC connectorsLenght: 10 meters Specifications Geometry Characteristics Core Diameter: 50 ± 2.5 [pm]Core Non-Circularity: < 5.0 [%]Cladding Diameter: 125.0 ± 0.8 [Mm]Cladding Non-Circuiarity: < 0.6 [%]Coating Diameter: 245 ± 7 [Mm]Coating/Ciadding Concentricity Error: < 10.0 [pm]Coating Non-Circularity: < 6.0 [%]Core/Ciadding Concentricity Error: < 1.0 [pm]Delivery Length: Up to 8.8 [km/reel] Optical Characteristics Attenuation:850nm: < 2.4 [dB/km]953nm: < 1.7 [dB/km]1300nm: < 0.3 [dB/km]Overfilled Modal Bandwidth:850nm: > 3500 [MHz km]953nm: > 1850 [MHz km]1300nm: > 500 [MHz km]Effective Modal Bandwidth:850nm: > 4700 [MHz km]953nm: > 2470 [MHz km]Application support distance on40 & 100 Gigabit Ethernet: 850nm: 200 [m]10GBASE-SR: 850nm: 600 [m]1000BASE-SX: 850nm: 1100 [m]Numerical Aperture: 0.200 ± 0.015Group Refractive Index:850nm: 1.4821300nm: 1.477Zero Dispersion Wavelength, ?o: 1297-1328 [nm]Zero Dispersion Slope, So: < 4(-103) /(840(1-( ?o/840)4)) [ps/(nm2 km)]Macrobending loss*:@850nm:2 turns @15mm radius < 0.1 [dB]2 turns @7.5mm radius < 0.2 [dB]@1300nm:2 turns @15mm radius < 0.3 [dB]2 turns @7.5mm radius < 0.5 [dB] Backscatter Characteristics (850nm & 1300nm) Step (Mean of bidirectional measurement): < 0.10 [dB]Irregularities over fibre length and point discontinuity: < 0.10 [dB]Attenuation uniformity: < 0.08 [dB/km] Environmental Characteristics (850nm & 1300nm) Temperature Cycling at -60°C to +85°C: < O.10 [dB/km]Temperature-Humidity Cycling at -10°C to +85°C and 4% to 98% RH < 0.10 [dB/km]Water Immersion at 23°C for 30 days: < 0.10 [dB/km]Dry Heat at 85°C for 30 days: < 0.10 [dB/km]Damp Heat at 85°C and 85% RH for 30 days: < 0.10 [dB/km] Mechanical Specification Proof test:> 9.0 [N]> 1.0 [%]> 100 [kpsi]Coating strip force:typical average force: 1.5 [N]peak force: >1.3 < 8.9 [N]Dynamic stress corrosion susceptibility parameter (Nd , typical): 27 * : The Launch condition for the macrobending loss measrement fulfils that described in IEC 61280-4-1.
