LPWAN antenne Delock

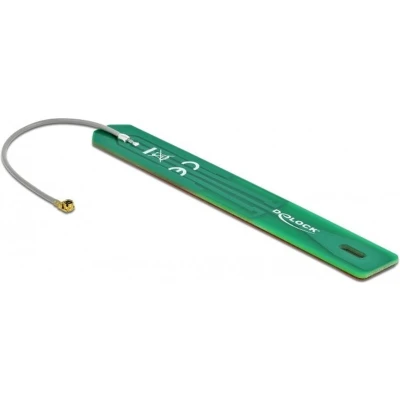

Description This antenna by Delock allows the usage of the 880 - 960 MHz band indoors. LPWAN LPWAN (Low Power Wide Area Network) are radio networks that cover large distances. They are characterized by a high reception sensitivity and by a low energy consumption. Specification • Connector: 1 x I-PEX Inc., MHF® I plug • Frequency range: 880 MHz - 960 MHz • GSM, LTE, ZigBee, Z-Wave, NB-IoT, ISM, LoRa • Antenna gain: 2 dBi • VSWR: 2.0 • Impedance: 50 Ohm • Mounting type: self-adhesive • Operating temperature: -10 °C ~ 60 °C • Housing material: FR4 • Colour: black • Cable type: coaxial • Cable type: 1.13 • Cable colour: black • Cable diameter: ca. 1.13 mm • Cable attenuation: 3.2 dB @ 2.4 GHz per meter • Smallest bending radius: 4.5 mm • Dimensions (LxWxH): ca. 9.52 x 1.30 x 0.12 cm • Cable length incl. connector: ca. 7.5 cm System requirements • Device with one free I-PEX Inc., MHF® I port Package content • Antenna
