LTE antenne Delock

Onlinekabelshop.nl

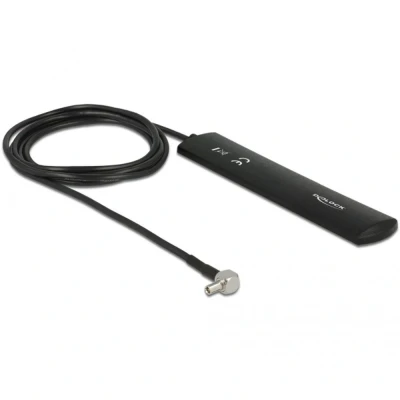

Description This LTE antenna by Delock can be installed indoors and takes advantage of all LTE bands. It is completely compatible to GSM, UMTS, LTE, ISM, DECT, Bluetooth, WLAN 2.4 GHz, ZigBee, LoRa, NB-IoT and Z-Wave. Specification• Connector: 1 x TS-9 plug 90°• Frequency range: 690 - 960 MHz 1710 - 2700 MHz• GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2,4 GHz, Bluetooth, ISM, DECT, LoRa• Antenna gain: 3 dBi• Impedance: 50 Ohm• Polarisation: linear, vertical• Horizontal beam angle: 360°• VSWR: 2.0• Operating temperature: -10 °C ~ 55 °C• Housing material: ABS• Colour: black• Cable: coaxial• Cable type: RG-174• Cable colour: black• Cable attenuation: 1.5 dB @ 1.5 GHz per meter• Cable diameter: ca. 2.7 mm• Cable length incl. connector: ca. 1 m• Dimensions (LxWxH): ca. 115 x 22 x 5 mm System requirements • Device with one free TS-9 port Package content • Antenna

Allekabels

Type: RG-174, Impedantie: 50 Ohm, Aansluiting: TS-9 Stekker Versterking: 3 dBi, Frequentie: 690 ~ 2700 MHz
