LTE antenne Delock

Onlinekabelshop.nl

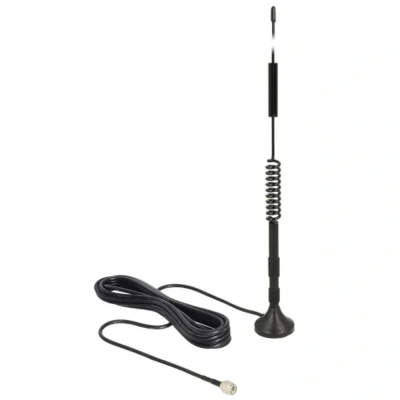

Description This LTE antenna by Delock allows the usage of different LTE bands inside and outside. It is completely compatible to GSM, LTE, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave. Specification• Connector: 1 x SMA plug• Frequency range: 700 - 960 MHz 1710 - 2690 MHz• GSM, LTE, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave, LoRa 868 MHz / 915 MHz• Antenna gain: 5 dBi• Impedance: 50 Ohm• Polarisation: vertical• VSWR: 2.0• Transmission power: 50 W• Operating temperature: -30 °C ~ 70 °C• Colour: black• Cable: coaxial• Cable type: RG-58• Cable colour: black• Cable attenuation: 0.6 dB @ 1 GHz per meter• Cable diameter: ca. 4.95 mm• Cable length incl. connector: ca. 3 m• Antenna length including magnetic base: ca. 33.7 cm• Diameter magnetic base: ca. 40.0 mm System requirements • Device with a free SMA jack Package content • LTE antenna

Bol Partner

DeLOCK 12427. Antenne versterkingsniveau (max): 5 dBi, Frequentieband: 0.7 - 0.96, 1.71 - 2.69 GHz, Impedantie: 50 Ohm. Soort antenne: Omnidirectionele antenne, Aansluiting antenne: SMA, Geslacht connector: Mannelijk. Hoogte: 337 mm, Diameter: 4 cm. Type verpakking: Polybag

Allekabels

Type: RG-174, Impedantie: 50 Ohm, Aansluiting: SMA stekker, Versterking: 5 dBi, Frequentie: 700 ~ 2690 MHz.
