M.2 NGFF naar mini PCIe adapter Delock

Onlinekabelshop.nl

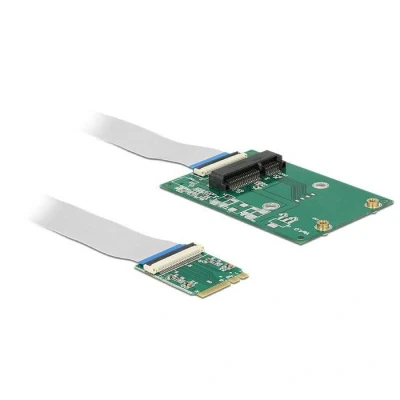

Description This converter by Delock changes the M.2 key A or key E interface into a Mini PCIe interface. Different Mini PCIe modules with USB and PCIe signals can be inserted in the converter. On the M.2 key A or key E interface can be used e.g. WLAN, Bluetooth, GNSS, 3G, HSPA and NFC modules. Further it is possible to use both functions of a module which has e.g. WLAN and Bluetooth. Specification• Connector: 1 x 59 pin M.2 key A+E male>1 x Mini PCIe slot• PCI Express Rev. 1.1• Interface: PCIe + USB• Form factor M.2: 2230• Form factor Mini PCIe: half size and full size• Suitable for M.2 slot with key A or key E based on PCIe and USB• Operating temperature: 0 °C ~ 80 °C• Dimensions (LxWxH): M.2 board: ca. 30 x 22 x 3 mm Mini PCIe board: ca. 69 x 45 x 6 mm• OS independent, no driver installation necessary System requirements • One free M.2 key A or key E slot Package content • Converter board M.2• Mini PCIe board• 3 x flat cable, length ca.: 1 x 10 cm, 1 x 20 cm, 1 x 30 cm• Screws• User manual

Allekabels

Aansluiting 1: 59-Polig M.2 NGFF Key A / E slot Aansluiting 2: Mini PCIe slot Extra: 3 Flatcable's (10cm / 20cm / 30cm) Vormfactor: M.2 NGFF 2230
