Mini PCIe I/O halve grootte 2 x SATA 6 Gb/s Delock

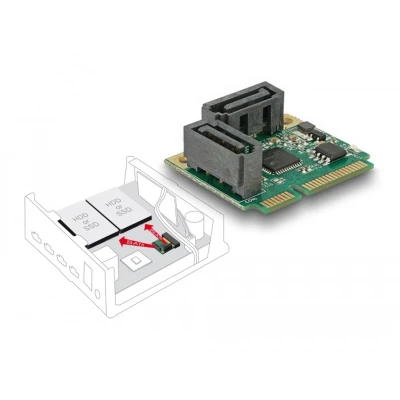

Description This Mini PCIe module by Delock expands the system by two internal SATA 6 Gb/s ports. It can be used to connect devices like SSDs, SATA HDDs, or similar drives. Through the attached extension it is possible to use the module in full size slots. Specification • Connectors: 1 x Mini PCI Express, Rev. 1.2 2 x SATA 6 Gb/s 7 pin plug • Chipset: Asmedia ASM1061 • Interface: PCI Express revision 2.0 • Form factor: Mini PCIe half size • Data transfer rate: SATA up to 6 Gb/s PCI Express up to 5 Gb/s • Supports Native Command Queuing (NCQ) • Supports Serial ATA AHCI System requirements • Linux Kernel 4.9.4 or above • Windows 7/7-64/8.1/8.1-64/10/10-64/11 • Motherboard with a free Mini PCIe slot with a PCIe interface Package content • Mini PCIe module • Driver CD • Extension • 4 x screw • User manual
