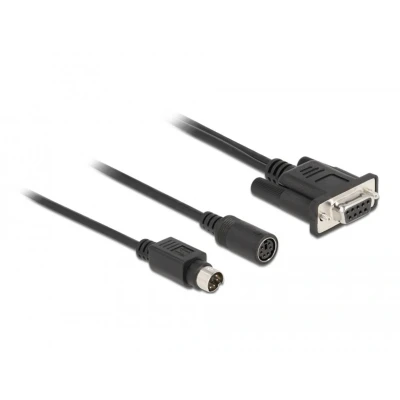

Navilock Connection Cable MD6 Serial > D-SUB 9 For GNSS Receiver

Description Navilock GNSS receiver possess an MD6 universal connector. The pin assignment of this connector is identical with chipsets by u-blox, Sony, GLONASS and SiRF. In order to connect the GNSS receiver to a serial port you need this specific connecting cable. It will be connected to the PS2 jack of your notebook, or tablet PC for power supply. The PS2 connector is only a power supply connection and does not transfer a data channel. The data protocol will be provided by the D-Sub9 plug. Specification • Connector: 1 x MD6 jack 1 x D-SUB 9 jack 1 x PS/2 plug • Power supply via PS2 • Length incl. connectors: 6 pin connecting cable ca. 59 cm PS/2 cable: ca. 39 cm System requirements • Navilock serial MD6 GNSS receiver with a free D-Sub9 plug Package content • Connection cable for GNSS Receiver
