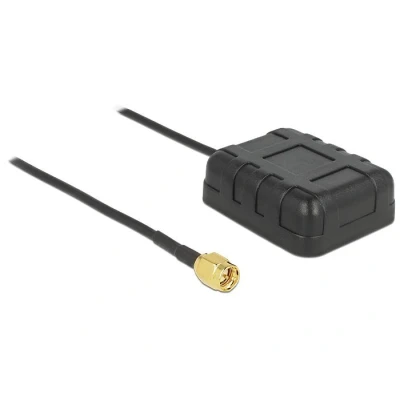

Navilock NL 290BG SMA BeiDou + GPS Multi GNSS Antenne 3 m

Description You can use this active antenna for your GNSS equipment to receive GPS and BeiDou (COMPASS) signals simultaneously. Specification • External active additional antenna for GNSS receivers • Connector: SMA plug • Polarisation: RHCP • Frequency range: GPS: 1575.42 MHz +/- 3 MHz BeiDou: 1561.098 MHz +/- 5 MHz • Patch antenna: 3 dBic • Patchantenne: 25 x 25 x 6 mm• VSWR: < 1.5 • Axial Ratio: 3 dBLNA • Gain: 28 dB • VSWR: < 2.0 • Impedance: 50 Ohm • Operating voltage: 3.0 ~ 5.0 V • Current consumption: 10 ~ 20 mA • Operating temperature: -40 °C ~ 85 °C • Protection class: IP65 • Weigth: 0.150 kg • Cable type: RG174 • Cable diameter: ca. 2.5 mm • Cable colour: black • Cable length incl. connector: 3 m • Dimensions (LxWxH): ca. 5.00 x 4.25 x 1.65 cm • Magnetic housing bottom • Material: ABS System requirements • GNSS device with SMA jack Package content • GNSS antenna

Navilock 60554. Antenne versterkingsniveau (max): 5 dBi, Frequentieband: 1.575 GHz, Impedantie: 50 Ohm. Soort antenne: Richtantenne, Aansluiting antenne: SMA, Geslacht connector: Mannelijk. Breedte: 425 mm, Diepte: 500 mm, Hoogte: 165 mm. Aantal per verpakking: 1 stuk(s)
