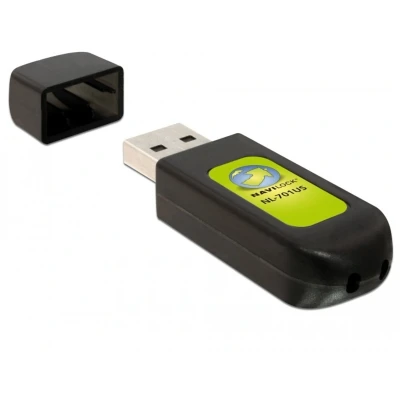

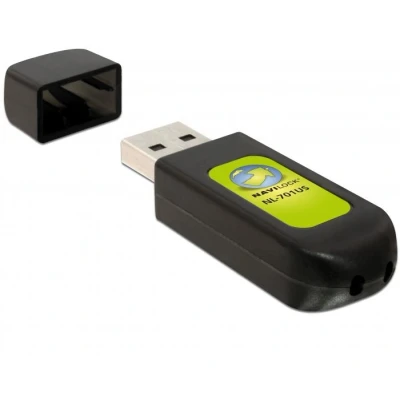

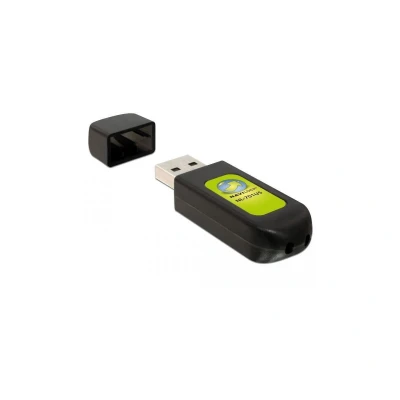

Navilock NL 701US USB 2.0 GPS ontvanger u blox 7
Uitgelicht
|
150,98 |
Naar shop
|
Beschrijving
Bol Partner
Description The USB GPS receiver based on u-blox 7 chipset has a built-in antenna for high sensitivity. It is possible to use this GPS receiver with a laptop and suitable routing software for navigation. Due to its compact design it is the ideal companion on every tour. Specification • Connector: 1 x USB 2.0 Type-A male• Chipset: u-blox UBX-G7020-KT• Frequency: GPS: L1, 1575.4200 MHz GLONASS: L1, 1602 (k x 0.5625) MHz QZSS: L1, 1575.4200 MHz• Accepts the signals of up to 56 satellites at the same time• Supports AssistNow online / offline, SBAS (WAAS, EGNOS and MSAS)• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG, TXT• Baud Rate: 9600 bps• Update rate: 1 Hz• Sensibility: -162 dBm tracking / -148 dBm acquisition (GPS)• Operating temperature: -20 °C ~ 60 °C• Power supply: 5 V DC• Current consumption: max. 40 mA• Cold start in ca. 29 seconds• Hot start in ca. 1 second• Positioning accuracy: 2.5 m CEP (Circular Error Probable) 2.0 m CEP with SBAS (Circular Error Probable)• Dimensions (LxWxH): ca. 65.5 x 23.0 x 11.0 mm System requirements • Linux Kernel 2.6 or above• Windows 10/10-64/11• Laptop or tablet with a free USB Type-A port Package content • USB 2.0 receiver• USB extension cable• Navilock support CD incl. driver and user manual
Beschrijving
(2)
Description The USB GPS receiver based on u-blox 7 chipset has a built-in antenna for high sensitivity. It is possible to use this GPS receiver with a laptop and suitable routing software for navigation. Due to its compact design it is the ideal companion on every tour. Specification • Connector: 1 x USB 2.0 Type-A male• Chipset: u-blox UBX-G7020-KT• Frequency: GPS: L1, 1575.4200 MHz GLONASS: L1, 1602 (k x 0.5625) MHz QZSS: L1, 1575.4200 MHz• Accepts the signals of up to 56 satellites at the same time• Supports AssistNow online / offline, SBAS (WAAS, EGNOS and MSAS)• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG, TXT• Baud Rate: 9600 bps• Update rate: 1 Hz• Sensibility: -162 dBm tracking / -148 dBm acquisition (GPS)• Operating temperature: -20 °C ~ 60 °C• Power supply: 5 V DC• Current consumption: max. 40 mA• Cold start in ca. 29 seconds• Hot start in ca. 1 second• Positioning accuracy: 2.5 m CEP (Circular Error Probable) 2.0 m CEP with SBAS (Circular Error Probable)• Dimensions (LxWxH): ca. 65.5 x 23.0 x 11.0 mm System requirements • Linux Kernel 2.6 or above• Windows 10/10-64/11• Laptop or tablet with a free USB Type-A port Package content • USB 2.0 receiver• USB extension cable• Navilock support CD incl. driver and user manual
AllekabelsDe USB-GPS-ontvanger met de u-blox 7 chipset heeft een ingebouwde actieve antenne. Navigatie is mogelijk in combinatie met een notebook en de bijbehorende navigatiesoftware. Zijn zeer compacte ontwerp maakt hem tot de ideale metgezel op elke reis. - Aansluiting: 1 x USB 2.0 Type-A aansluiting - Chipsatz: u-blox UBX-G7020-KT - Frequentie: GPS: L1, 1575.4200 MHz GLONASS: L1, 1602 (k x 0.5625) MHz QZSS: L1, 1575.4200 MHz - Verwerkt signalen van maximaal 56 satellieten tegelijk - Ondersteunt AssistNow online/offline, SBAS (WAAS, EGNOS en MSAS) - Ondersteunt NMEA 0183 protocollen: GGA, GSA, GSV, RMC, VTG, TXT - Baudrate: 9600 bps - Update rate: 1 Hz - Gevoeligheid: -162 dBm tracking / -148 dBm acquisitie (GPS) - Bedrijfstemperatuur: -20 C ~ 60 C - Stroomvoorziening: 5 V DC - Stroomverbruik: max. 40 mA - Koude start in ca. 29 seconden - Warme start in ca. 1 seconde - Positienauwkeurigheid: 2,5 m CEP (Circular Error Probable) 2,0 m CEP met SBAS (Circular Error Probable) - Afmetingen (LxBxH): ca. 65,5 x 23,0 x 11,0 mm - Windows Vista/7/8/8.1/10, Linux Kernel 2.6 - Notebook of tablet met een vrije USB Type-A aansluiting - USB 2.0-ontvanger - USB-verlengkabel - Navilock-support-CD incl. driver en gebruikershandleiding Navigatie Ontvanger USB
