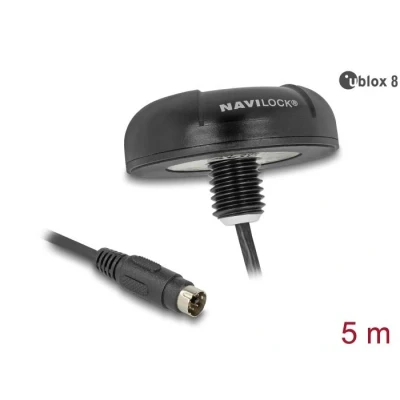

Navilock NL 803P EVA M8Q MD6 Seriell PPS Multi GNSS Empfänger u blox
Beschrijving
Onlinekabelshop.nl
Description The MD6 serial multi GNSS Receiver based on u-blox 8 chipset has a built-in antenna for high sensitivity. You can use this GNSS Receiver with a laptop and a suitable routing software for navigation. The MD6 universal connector enables the connection of optional USB or serial connecting cables. The NL-803P GNSS receiver can be installed onto different vehicle roofs (car, truck, bus etc.) by using the included installation material. Thus it can perfectly fit into the vehicle concept, due to its design. Specification• Connector: MD6 Navilock plug (USB or serial cable are optional available)• Chipset: u-blox 8 EVA-M8Q• Frequency: GPS: L1, 1575.4200 MHz GLONASS: L1, 1602 (k x 0.5625) MHz BEIDOU COMPASS: B1, 1561.0980 MHz GALILEO: E1, 1575.4200 MHz QZSS: L1, 1575.4200 MHz• Accepts the signals of upto 72 satellites at the same time• Supports AssistNow online / offline, SBAS (WAAS, EGNOS, QZSS and MSAS)• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG• Auto Baud Rate up to 115200 bps• PPS signal on pin 6 (LVTTL 3.3 V)• Update rate: single GNSS: 18 Hz (e.g. GPS solo) multi GNSS: 10 Hz (e.g. GPS+GLONASS)• Sensibility: max. -164 dBm• Protection class: IPX7• Operating temperature: -10 °C ~ 50 °C• Power supply: 5 V DC• Current consumption: max. 45 mA• Cold start in ca. 26 seconds• Hot start in ca. 1 second• Positioning accuracy: 2.5 m CEP (Circular Error Probable) and 2 m CEP with SBAS• Cable length: ca. 5 m• Dimensions (Ø x H without screw thread): ca. 62 mm x 21 mm System requirements • Linux Kernel 5.19 or above• Windows 10/10-64/11• MD6 connection cable Package content • MD6 serial receiver• Mounting material: stainless steel nut and washer
Beschrijving
(2)
Description The MD6 serial multi GNSS Receiver based on u-blox 8 chipset has a built-in antenna for high sensitivity. You can use this GNSS Receiver with a laptop and a suitable routing software for navigation. The MD6 universal connector enables the connection of optional USB or serial connecting cables. The NL-803P GNSS receiver can be installed onto different vehicle roofs (car, truck, bus etc.) by using the included installation material. Thus it can perfectly fit into the vehicle concept, due to its design. Specification• Connector: MD6 Navilock plug (USB or serial cable are optional available)• Chipset: u-blox 8 EVA-M8Q• Frequency: GPS: L1, 1575.4200 MHz GLONASS: L1, 1602 (k x 0.5625) MHz BEIDOU COMPASS: B1, 1561.0980 MHz GALILEO: E1, 1575.4200 MHz QZSS: L1, 1575.4200 MHz• Accepts the signals of upto 72 satellites at the same time• Supports AssistNow online / offline, SBAS (WAAS, EGNOS, QZSS and MSAS)• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG• Auto Baud Rate up to 115200 bps• PPS signal on pin 6 (LVTTL 3.3 V)• Update rate: single GNSS: 18 Hz (e.g. GPS solo) multi GNSS: 10 Hz (e.g. GPS+GLONASS)• Sensibility: max. -164 dBm• Protection class: IPX7• Operating temperature: -10 °C ~ 50 °C• Power supply: 5 V DC• Current consumption: max. 45 mA• Cold start in ca. 26 seconds• Hot start in ca. 1 second• Positioning accuracy: 2.5 m CEP (Circular Error Probable) and 2 m CEP with SBAS• Cable length: ca. 5 m• Dimensions (Ø x H without screw thread): ca. 62 mm x 21 mm System requirements • Linux Kernel 5.19 or above• Windows 10/10-64/11• MD6 connection cable Package content • MD6 serial receiver• Mounting material: stainless steel nut and washer
AllekabelsDe MD6 seriële Multi GNSS ontvanger met de u-blox 8 chipset beschikt over een ingebouwde actieve antenne. In combinatie met een notebook en de bijbehorende navigatiesoftware is navigatie mogelijk. De MD6 universele aansluiting maakt de aansluiting van optionele USB- of seriële aansluitkabels mogelijk. De NL-803P GNSS ontvanger kan met behulp van het meegeleverde bevestigingsmateriaal op diverse voertuigdaken (personenauto, vrachtwagen, bus etc.) worden gemonteerd. Daarmee past hij met zijn behuizingsvorm onopvallend in het voertuigconcept. • Linux Kernel 5.19 of hoger • Windows 10/10-64/11 • MD6 aansluitkabel • MD6 seriële ontvanger • Bevestigingsmateriaal: moer en onderlegschijf roestvrij staal Navigatie Ontvanger MD6
