Omnitronic XPA 2700 Versterker

DJGear

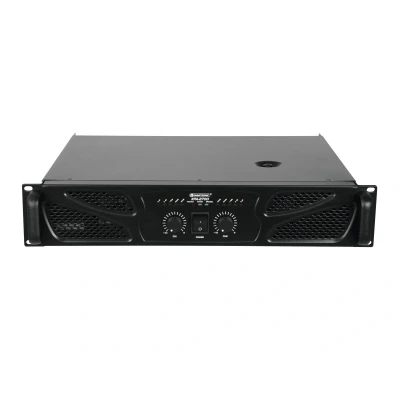

OMNITRONIC XPA-2700 Amplifier 3 operating modes can be selected (stereo, parallel or bridged) Input sensitivity adjustable Speaker switch-on delay 2 level controls Each channel with LED for activated protective circuit (protect) and output meter with clip LED Complete protection set against short-circuit, overheat, DC voltage, power on/off transients Fan cooling Signal inputs via XLR or RCA connectors Speaker outputs via lockable speaker jacks and pairs of screw terminals Additional Speaker plug for 8-ohm bridge operation Class H circuitry Rack installation with 2 units Power supply: 230 V AC, 50 Hz Power consumption: 700 W (1/8 power) Power output sine: Stereo 4 ohms 2 x 1350 W Stereo 8 ohms 2 x 1080 W 8 ohms bridged 1 x 2700 W Frequency range: 20-20000 Hz, ±1 dB Damping factor: >200 Distortion factor: 0.5 % Slew rate: >10 V/µsec S/N ratio: >100 dB Input sensitivity: 0.775 V / 1.4 V, switchable Input impedance: 20 kohms (balanced), 10 kohms (unbalanced) Input connectors: 2 x XLR, 2 x RCA Output connectors: 2 x speaker, 2 x pairs of screw terminals Control elements: power switch, level control per channel, mode switch (stereo/bridged), limiter selector, groundlift selector LED indicators: bridged, protect, and 5-fold output meter with clip LED (per channel) Protection circuits: short-circuit, overheat, DC voltage, power on/off transients, softstart Construction: steel chassis with aluminum front panel Dimensions (DxWxH): 415 x 483 x 103 mm (19", 2 U) Weight: 17.9 kg

Conrad

U heeft betrouwbare versterkers nodig en wilt er geen vermogen aan uitgeven? De nieuwe XPA-serie van Omnitronic combineert beproefde en innovatieve techniek en biedt u hoge prestaties voor...
