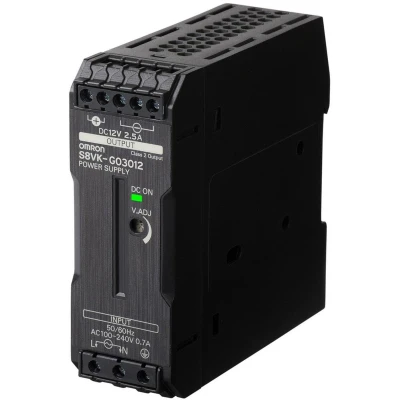

Omron Gelijkstroomvoeding 12 VDC S8VKG03012 - DIN-rail - 100-240 VAC - 30W

Prijzen vanaf
77,97

Uitgelicht

Beschrijving

Bengshop OMRON VOEDING S8VK-G, 12 VDC/2,5 A, 30 W, DIN-RAIL, 100-240 VAC PRIMAIR, GESLOTEN BEHUIZING, SCHROEFAANSLUITING S8VK-G03012 Voeding S8VK-G, 12 VDC/2,5 A, 30 W, DIN-rail, 100-240 VAC primair, gesloten behuizing, schroefaansluiting Type: DIN-rail Mounting method: DIN rail Phase: Single Output voltage: 12 V Power output: 30 W Efficiency: 82 % Rated output current: 2.5 A Power boost ratio: 120 % Temperature range: -40-70 C Terminal type: Screw Communication port(s): None Alarm function: - Number of output branches: 1 Rated supply voltage at AC 50 Hz: 100-240 V Allowable supply voltage AC: 85-264 V Allowable supply voltage DC: 90-350 V Product Width (unpacked): 32 mm Product Height (unpacked): 90 mm Product Depth (unpacked): 90 mm

Vergelijk aanbieders (2)

Sorteren op:

€ 77,97 € 8,50 verzendkosten Totaal € 86,47

€ 89,00 Gratis verzending

Beschrijving (2)
Bengshop

OMRON VOEDING S8VK-G, 12 VDC/2,5 A, 30 W, DIN-RAIL, 100-240 VAC PRIMAIR, GESLOTEN BEHUIZING, SCHROEFAANSLUITING S8VK-G03012 Voeding S8VK-G, 12 VDC/2,5 A, 30 W, DIN-rail, 100-240 VAC primair, gesloten behuizing, schroefaansluiting Type: DIN-rail Mounting method: DIN rail Phase: Single Output voltage: 12 V Power output: 30 W Efficiency: 82 % Rated output current: 2.5 A Power boost ratio: 120 % Temperature range: -40-70 C Terminal type: Screw Communication port(s): None Alarm function: - Number of output branches: 1 Rated supply voltage at AC 50 Hz: 100-240 V Allowable supply voltage AC: 85-264 V Allowable supply voltage DC: 90-350 V Product Width (unpacked): 32 mm Product Height (unpacked): 90 mm Product Depth (unpacked): 90 mm

Bol Partner

Omron Voedingen S8VK DC voedingseenheid, (bxdxh), 32x90x90mm. 1e Secundaire spanning 10.8V - 13.8V. Spanning type AC/DC. Nominale voedingsspanning AC 50 Hz 100-240V. Modulair ontwerp voor railmontage. Uitgangsstroom 12,5A, uitgangsvermogen 30W.


Productspecificaties

Merk OMRON
EAN
  • 4548583357686
Materiaal
  • Kunststof
Kleur
  • Zwart
Maat
MPN
  • E24DN
Beschermingsgraad (IP)
  • IP20
Beschermingsgraad (NEMA)
  • Overig
Breedte in module-eenheden
  • 1
Breedte
  • 32 mm
Diepte
  • 90 mm
Directe montage mogelijk
  • Nee
Draagrailmontage mogelijk
  • Ja
Geschikt voor veiligheidsfunctie
  • Ja
Gestabiliseerd
  • Nee
Hoogte
  • 90 mm
Inbouwbreedte
  • 32 mm
Inbouwhoogte
  • 100 mm
Kortsluitvast
  • Nee
Max. uitgangsstroom 1
  • 2.5 A
Max. uitgangsstroom 2
  • 0 A
Max. uitgangsstroom 3
  • 0 A
Modulaire uitvoering (voor railmontage)
  • Ja
Nominale uitgangsspanning 1
  • 12 V
Nominale uitgangsstroom 1
  • 2.5 A
Nominale voedingsspanning bij AC 50 Hz
  • 100-240 V
Nominale voedingsspanning bij AC 60 Hz
  • 100-240 V
Nominale voedingsspanning bij DC
  • 90-350 V
Opgenomen vermogen
  • 85.1 VA
Performance level volgens EN ISO 13849-1
  • Geen
Secundaire spanning instelbaar
  • Nee
SIL conform IEC 61508
  • Geen
Spanningstype voedingsspanning
  • AC/DC
Uitgangsspanning geregeld
  • Nee
Uitvoering elektrische aansluiting
  • Schroefaansluiting
Uitvoering
  • elektrische aansluiting Schroefaansluiting
Vermogensafgifte
  • 30 W
Wandmontage mogelijk
  • Ja
