Parallel Delock

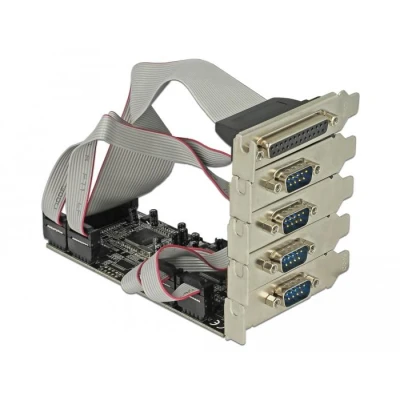

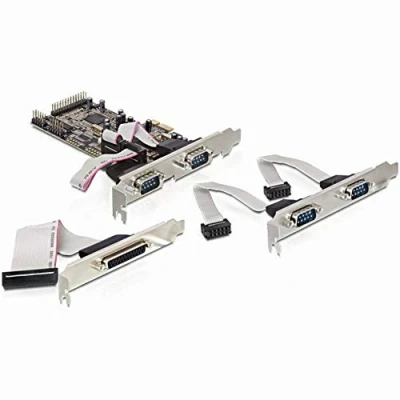

Description This PCI Express card by Delock expands the PC by four external serial ports and one external parallel port. Different devices, such as scanner, printer, mouse etc., can be connected to the card. Specification • Connectors: external: 2 x serial RS-232 DB9 male 2 x serial RS-232 DB9 male (separate rear bracket) 1 x Parallel DB25 female (separate rear bracket) internal: 1 x PCI Express x1, V1.0a • Chipset: Moschip MCS9922 • Data transfer rate: serial up to 115.2 Kb/s parallel up to 1.5 Mb/s • FIFO: 16 byte • SPP, EPP, ECP compatible to IEEE 1284 • Compatible with 16C550 UART serial port System requirements • Windows Server-2003/Vista/7/8/8.1/10/10-64/11, Linux Kernel 2.6 • PC with one free PCI Express slot and two rear slot Package content • PCI Express card • 2 x rear bracket • 5 x low profile bracket • Driver CD • User manual

PCI Express Kaart 4x serieel + parallel, Bustype: PCI Express x1, x4, x8 of x16, Externe aansluiting: 4x serieel + parallel, Interne aansluiting: N/A Compatibiliteit: Windows 10, Linux.
