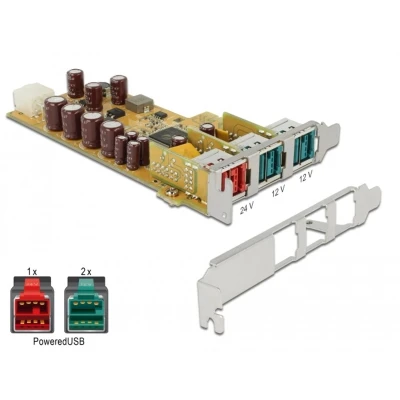

PCI Express Kaart 1x 24V + 2x 12V Delock

Description The PCI Express card by Delock expands a PC by three external PoweredUSB 2.0 ports. Different USB devices such as docking stations, card reader, external enclosure etc. can be connected. Furthermore, with the help of appropriate cables, devices which require a power supply of 12 V or 24 V, e.g. barcode scanner or POS systems, can be connected and need no additional power supply. Specification • Connectors: external: 1 x PoweredUSB 2.0 Type-A female 24 V 2 x PoweredUSB 2.0 Type-A female 12 V internal: 1 x PCI Express x1, V1.1 1 x 6 pin power connector • Chipset: Pericom PI7C9X • Output current max. 3 A per PoweredUSB port and 0.5 A per USB 2.0 port • Data transfer rate up to: Hi-Speed 480 Mbps, Full-Speed 12 Mbps, Low-Speed 1.5 Mbps • Over-current protection for each port • Compliant with OHCI and EHCI • ESD protection up to 15 kV System requirements • Windows 7/7-64/8.1/8.1-64/10/10-64, ex Linux Kernel 2.6.x / Kernel 4.9.4 • PC with one free PCI Express slot • Power supply with one free 6 pin power connector Package content • PCI Express card PoweredUSB • Low profile bracket

Aansluitingen: extern: 1 x PoweredUSB 2.0 type A aansluiting 24 V 2 x PoweredUSB 2.0 type A aansluiting 12 V Intern: 1 x PCI Express x1, V1.1 1 x 6-pins stroomaansluiting Chipset: Pericom PI7C9X Uitgangsstroom: 3 A per PoweredUSB-poort en 0,5 A bij USB 2.0
