PCI Express kaart > 2 x interne M.2 Key B met RAID Low Profile vorm

Onlinekabelshop.nl

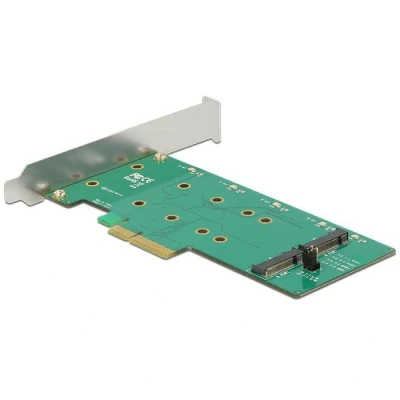

Description This PCI Express card by Delock expands the PC by two M.2 slots. It can be connected up to two M.2 SATA modules in format 22110, 2280, 2260, 2242, 2230 to the card. When using more than one SSD, there is the possibility to use different RAID level. Specification• Connector: internal: 2 x 67 pin M.2 key B slot 1 x PCI Express x4• Interface: SATA• Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key B or key B+M based on SATA• Maximum height of the components on the module: 1.5 mm application of double-sided assembled modules supported• Data transfer rate up to 6 Gb/s• Supports RAID 0, 1, SPAN• 4 x LED indicator• Bootable System requirements • Windows 7/7-64/8.1/8.1-64/10/10-64, Linux Kernel 3.3• PC with one free PCI Express x4 / x8 / x16 / x32 slot Package content • PCI Express card• Lowprofile bracket• 2 x fixing screw• User manual

Allekabels

Aansluitingen: 1 x PCI Express x4 2 x 67 Pin M.2 Key B Slot Chip: ASM1062R Interface: SATA Gegevensoverdrachtsnelheid: Tot 6 Gb/s Extra: Inclusief laagprofiel behuizing

Amazon

Type: Serial-ATA Aansluitingen: intern: 2x M.2 Gegevensnelheid: 6 GBit/s
