PCI Express x16 kaart naar 4 x interne NVMe M.2 Key M Delock

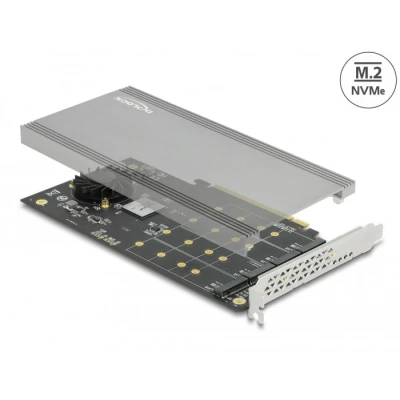

Description This PCI Express card by Delock expands the PC by four M.2 slots. Up to four M.2 SSDs in format 2280, 2260, 2242 and 2230 can be connected. With the help of the large heat sink and the fan, sufficient cooling of the M.2 modules is guaranteed.Delock M.2 PCIe card for gaming and serverEspecially in the gaming and server range, this card is ideally suited to expand the existing system by four fast M.2 NVMe slots. All slots can be used simultaneously. Specification • Connectors: internal: 4 x 67 pin M.2 key M slot 1 x PCI Express x16, V3.0• Chipset: Asmedia ASM2824• Interface: PCIe / NVMe• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe• Maximum height of the components on the module: 1.5 mm, application of double- sided assembled modules supported• Data transfer rate up to 32 Gbps• Supports NVM Express (NVMe)• Bootable, ex UEFI version 2.3.1• Supports S.M.A.R.T.• 1 x 40 mm fan for active cooling of the M.2 modules• 1 x heat sink• 4 x LED indicator• Dimensions heat sink (LxWxH): ca. 202 x 95 x 8 mm System requirements • Linux Kernel 3.17 or above• Windows 8.1/8.1-64/10/10-64/11• PC with one free PCI Express x16 / x32 slot Package content • PCI Express card with fan• Heat sink• M.2 mounting material• Screwdriver• 4 x thermal conductive pad• User manual

DeLOCK 89044 kaart en adapter voor interne M.2-interfaces
