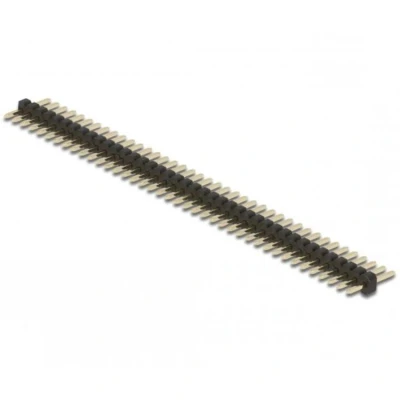

Description These pin headers by Delock can be used on printed circuit boards to create a connection between individual boards.
Specification • Number of pins: 40
• Pitch: 1.27 mm
• Contact resistance: 20 mΩ
• Isolation resistance: 1000 MΩ / min.
• Withstanding voltage: 500 V AC / DC
• Operating temperature: -40 °C ~ 105 °C
• Processing temperature: 230 °C (30 - 60 seconds)
• Contacts gold-plated
• Material of header: polyester UL 94V-0
• Colour: black
• Dimensions (LxWxH): ca. 50.8 x 6.3 x 2.0 mm
Package content • 5 x pin header
Beschrijving
(2)
Description These pin headers by Delock can be used on printed circuit boards to create a connection between individual boards. Specification • Number of pins: 40 • Pitch: 1.27 mm • Contact resistance: 20 mΩ • Isolation resistance: 1000 MΩ / min. • Withstanding voltage: 500 V AC / DC • Operating temperature: -40 °C ~ 105 °C • Processing temperature: 230 °C (30 - 60 seconds) • Contacts gold-plated • Material of header: polyester UL 94V-0 • Colour: black • Dimensions (LxWxH): ca. 50.8 x 6.3 x 2.0 mm Package content • 5 x pin header
AllekabelsPitch: 1,27 mm Type: Enkel Uitvoering: Recht Bouwvorm: Stekker Aantal pinnen: 40
