Quicrun Combo Fusion 2300KV ( Crawler ) Motor and ESC in one

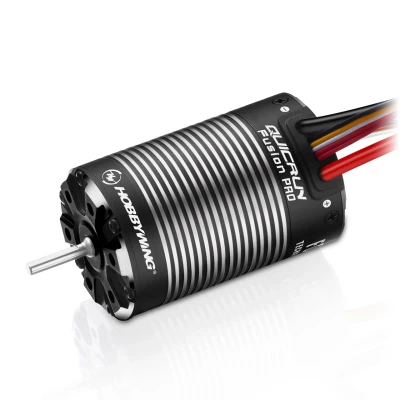

Quicrun Combo-Fusion-2300KV ( Crawler ) Motor and ESC in oneThe QuicRun Fusion Pro is the evolution and improvement of Hobbywing's first ever created 2-in-1 combo, the regular Quicrun Fusion. 1/10 crawlers get a space and weight-saving motor and ESC in one item combined. Now even stronger and better.Space in the car is often very limited and there is only little room to accommodate the various cables properly. But that's finally over now. With a length of only 58mm and thus just as big as a typical motor and with a weight of only 209g You wouldn't notice that motor and controller are combined here. Thanks to the intelligent torque and speed control, a crawler with this combo can easily adapt to any situation. Of course, the Fusion Pro is equipped with an excellent waterproof and dustproof casing. So the fun really knows no bounds. Even the electronic switch is protected accordingly.The technology used here is called FOC (Field-Oriented-Control) and is responsible for this great feeling of control. The performance of this drive has increased by a whopping 8% compared to its predecessor and the power consumption has even been reduced by 30%. This consumes less battery capacity and increases the driving time.Features2in1: Motor and controller combined in oneCompact design ideal for gaining space and reducing weightNoticeable improvement in performanceFOC drive, ideal for crawlers3 operating modesNormal (Forward, Reverse with brake)Normal (Forward, Reverse)Constant Speed (Forward, Reverse)Refined parameter settings as well as 4 new parametersMax Braking PowerRPM Decrease RatePunchNeutral RangePowerful torque even at slow speedsSuitable for all weather and track conditionsStrong built-in BEC with voltage switching functionVarious safety mechanisms against: undervoltage, overheating, loss of gas, etc.Programmable with the LED programming boxTechnical Specifications:Type: Brushless FOC SensoredCurrent (cont./peak): 60A/200ANo. of Cells: 2-3S LiPo, 6-9 cells NiMHBEC: 6V/7.4V with 6APoles: 4RPM: 2300kVOuter Diameter: 37mmLength: 58mmShaft Diameter: 3.175mmShaft Length: 16mmWaterproof: YesConnection: XT60Programming: - LED Program Box- integrated Programming InterfaceWeight: 209gApplication: 1/10 CrawlerDelivery:Quicrun Fusion Pro FOC motor with integratedXT60 plugDecal and manualHeatsink Kit, double sided tape and zip ties

Motor. Regulator. In één. Het geïntegreerde ontwerp is geoptimaliseerd voor een zo elegant en strak mogelijk uiterlijk. De totale lengte is nu 58 mm, 6 mm korter dan de vorige versie. Dankzij de kleinere afmetingen is de montage op het chassis eenvoudiger en neemt het minder ruimte in beslag.Verbeterde FOC-algoritme garandeert meer vermogen. Field-oriented Control (FOC) is een vectorbesturing van de motor zonder gebruik van sensoren. Het zorgt voor een enorm koppel, lineaire snelheid en een stille werking. Dankzij de verbetering van het besturingsalgoritme is de efficiëntie van de unit met 8% toegenomen en zijn de verliezen tot 30% lager. Dit betekent aanzienlijk meer vermogen. De unit wordt minder warm bij lage snelheden en u kunt langer rijden op één lading.Normale modus (vooruit, achteruit, rem) De normale modus remt niet in de neutrale stand. Zodra u het gaspedaal niet meer vasthoudt, blijft het model door de traagheid verder rijden.Normale modus (vooruit, achteruit) Deze modus gedraagt zich vergelijkbaar met een aandrijfs
