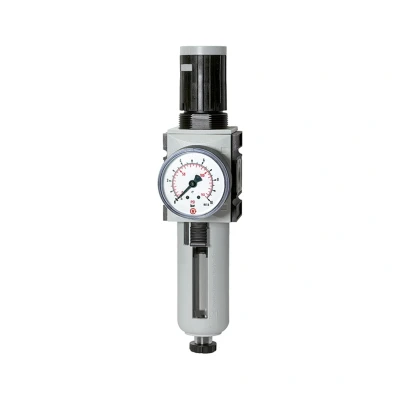

REDUCEERVENTIEL WATERAFSCHEIDER FUTURA 3/4 16 B 13000 L/M

Reduceerventiel-waterafscheider Futura 3/4" 0.5-16 bar 13000 liter/minuut De futura serie kenmerkt zich door een grote flow in een modern jasje. De druk kan worden geregeld door de bovenste knop te verdraaien en met de knop kan de ingestelde druk ook worden vastgezet.  Min. input pressure 1.5 bar Max. input pressure 16 bar Min. temperature range -10 °C Max. temperature range 50 °C Medium Compressed air, neutral gases Housing PA66 GF60 Connecting thread Material: Die-cast zinc Sealant NBR Diaphragms NBR Flow rate measurement at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar Series FUTURA Bowl Polycarbonate container with protective cage Filter element Cellpor (PE) Filter rating 5 µm Country of origin DE Thread G 3/4 Flow rate 13000 l/min Min. control range 0.5 bar Max. control range 16 bar Condensate drain semi-automatic Pressure gauge display min. 0 bar Pressure gauge display max. 25 bar Size 4 A 85.0 mm B 326.0 mm C 137.0 mm REACH SVHC1 substance name Lead CAS no. SVHC 1 7439-92-1 RoHS materials notice Rohs compliant REACH Info contains SVHC substance Class name MAX

RIEGLER 151778-FU 6110-16 filterregelaar »FUTURA«, PC, SK, Mano, BG 4, G 3/4, 0,5-16 bar, HA, 1 stuk
