SATA 22 Polig naar M.2 + mSATA Delock

Bol Partner

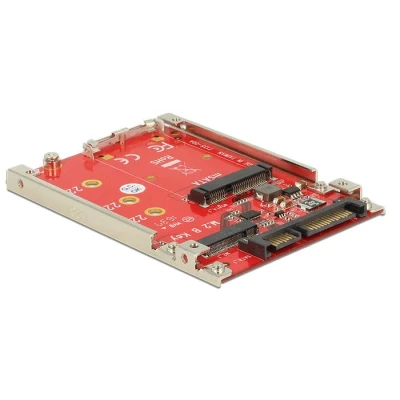

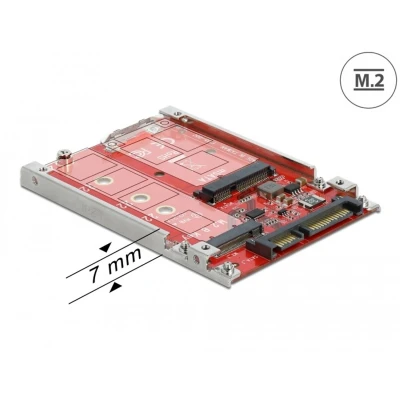

Description This converter by Delock enables the connection of an M.2 SSD in 2280, 2260, 2242 and 2230 format or an mSATA module in full size or half size format. If both slots are occupied, only the M.2 SSD can be used. The converter can be installed into the system through the SATA interface. Specification • Connectors: 1 x SATA 6 Gb/s 22 pin plug > 1 x 67 pin M.2 key B slot 1 x mSATA slot (half size / full size)• Interface: SATA• Form factor: 2.5″• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M based on SATA• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported• Maximum power for modules: 4 A• Bootable• Dimensions (LxWxH): ca. 100 x 70 x 7 mm System requirements • Linux Kernel 4.4 or above• Windows 7/7-64/8.1/8.1-64/10/10-64/11• A free SATA 22 pin interface Package content • Converter• 2.5″ frame• Mounting material• User manual

Allekabels

SATA 22-Polig naar M.2 + mSATA, Aansluiting 1: 22-Polig mSATA Female, Aansluiting 2: 67-Polig M.2 NGFF Key B, Vormfactor: 2280, 2260, 2242, 2230 Key B / B+M, Afmetingen (LxBxH): 100 x 70 x 7 mm.
